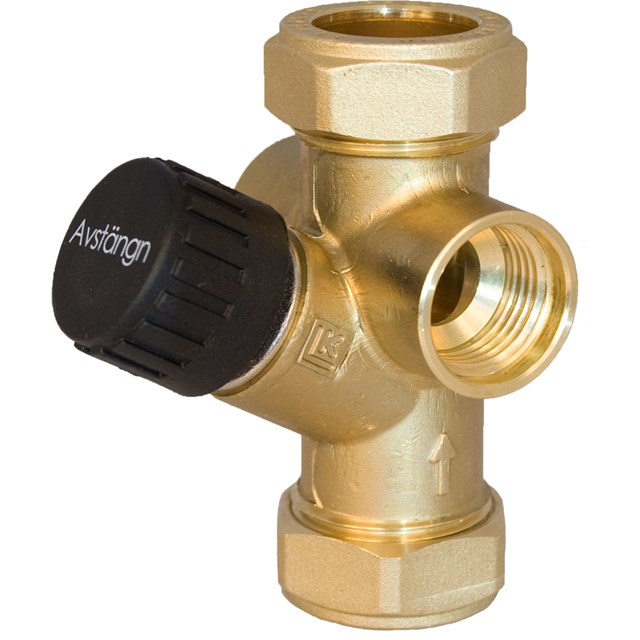

LK 509 HydroFill

LK 509 HydroFill

LK 509 HydroFill is a combination valve for hot water heaters. The valve housing has a shut-off to incoming cold water and an integrated non-return valve to prevent flowback of hot water to incoming cold water ...

Variants
Detailed Information
Documentation
Accessories & Spare parts

Variants

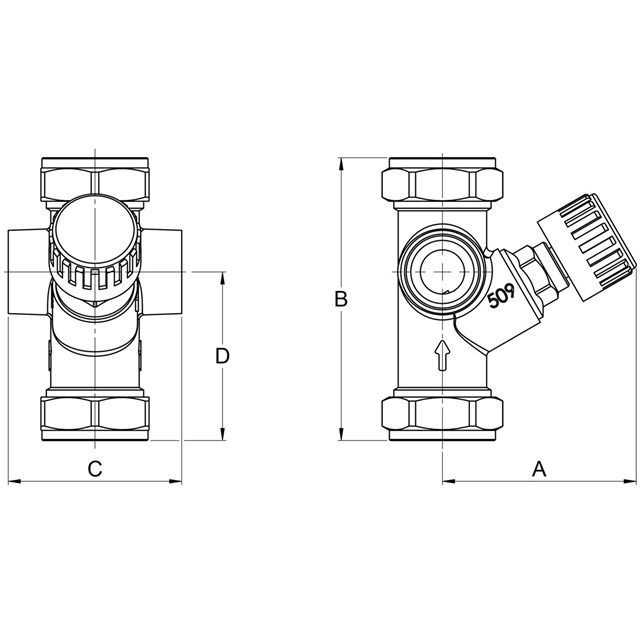

LK 509 - Compression fitting

LK 509 - Compression fitting 0 variants

Item List

Detailed Information

Description

LK 509 HydroFill is a combination valve for hot water heaters. The valve housing has a shut-off to incoming cold water and an integrated non-return valve to prevent flowback of hot water to incoming cold water pipes. The valve housing has two connections with internal thread G ½” for installation of safety, vacuum or filler valves.
Arrows on the valve body indicate the direction of flow.

Female threads are designed for the LK Armaturs system med O-ring seal. Other components are fitted in the usual way. When fitting to a male thread connection, adapter LK 373 is used - see under Accessories.
It is easier to fit the compression fitting if a lubricant is applied to the thread and bevel. Tighten first by hand and then with a box spanner. Number of turns to be tightened with a spanner: See separate data sheet for compression fittings. Soft pipes are to be fitted with a support sleeve.

The valve requires no maintenance. The installation should be checked regularly.

Technical Data

Max. working pressure:	1.0 MPa (10 bar)
Opening pressure, check valve:	5 kPa
Working temperature:	Min. 5 °C/Max. 90 °C
Material, valve body:	DZR Brass EN 12165 CW625N
Material, sealing:	EPDM

Technical Diagrams

Capacity Diagram

Documentation

Product sheet

LK 509 HydroFill

Accessories & Spare parts

Article no.	Article	Position

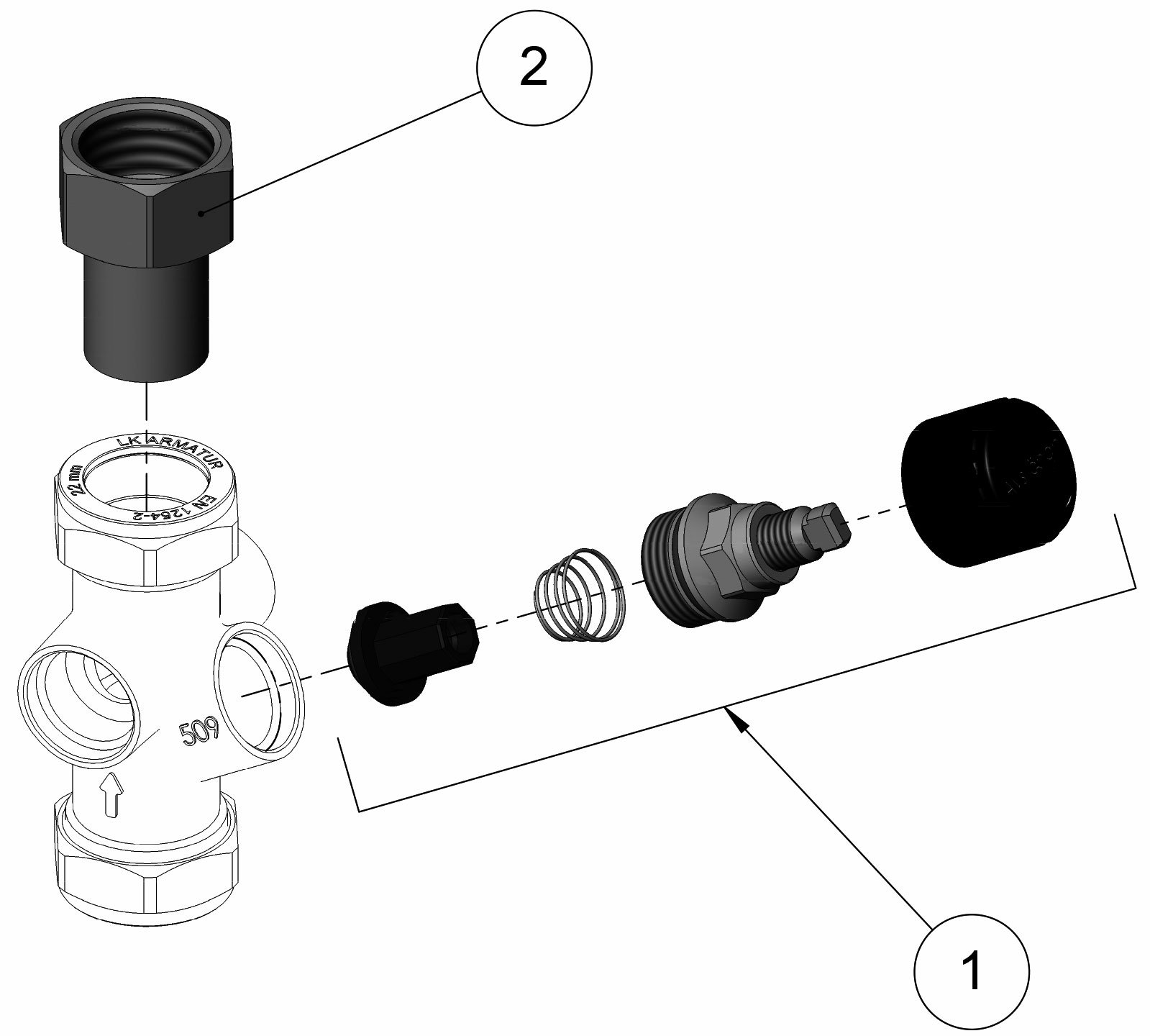

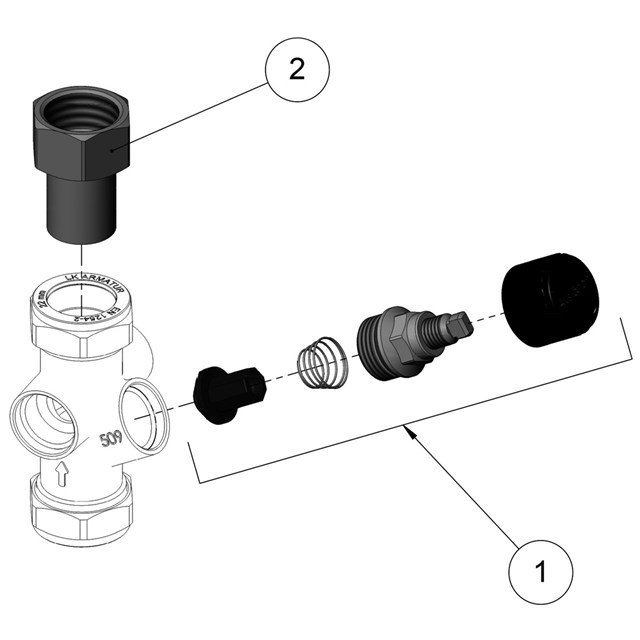

4311733	LK 684 Repair kit, Shut-off/Check valve	1
1898055	Adapter LK 373 22 x M ¾"	2
052002	LK 373 Adapter 15 x M ½"	2
