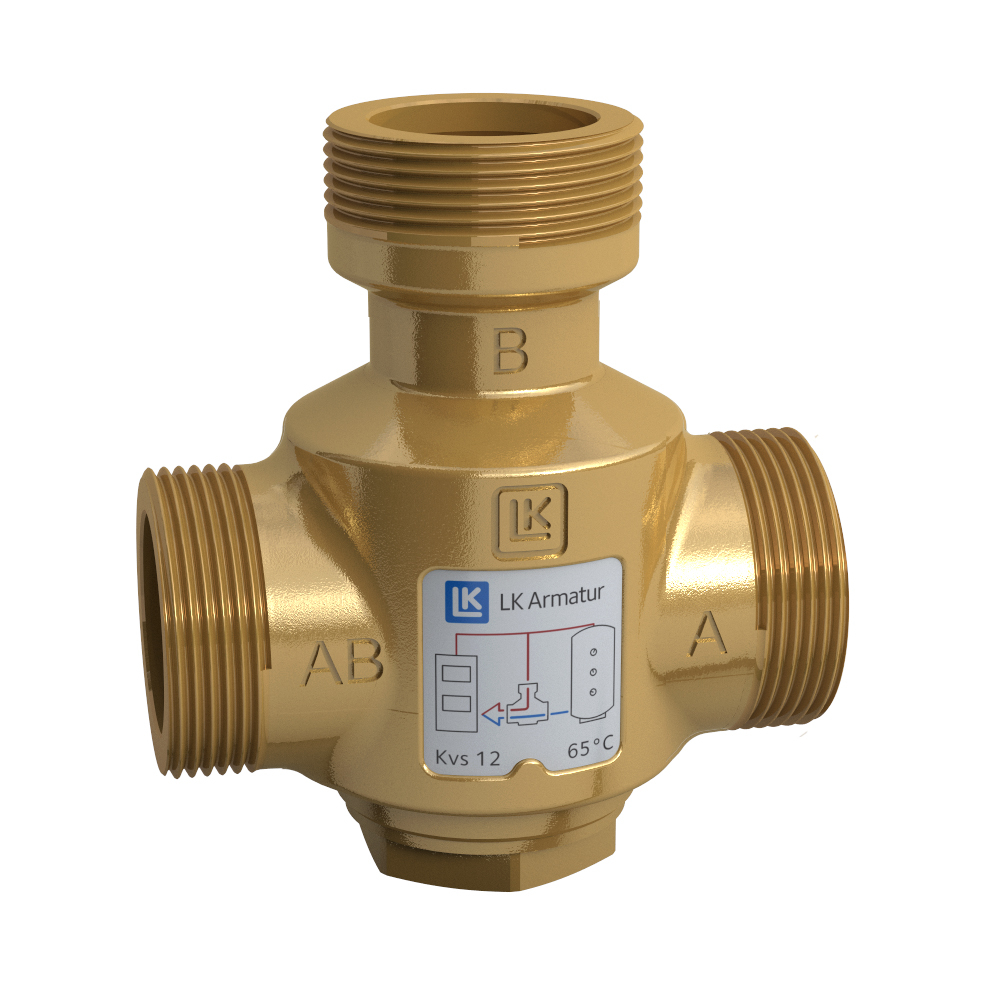

LK 823 ThermoVar®
LK 823 ThermoVar®
LK 823 ThermoVar®

LK 823 ThermoVar®

  • Increases the efficiency of the system
  • Prevents condensation and taring
  • Ensures an optimal temperature stratification in the storage tank

LK 823 ThermoVar® is a 3-way thermic loading valve for solid fuel/storage tank installations. The valve is intended to ensure both an optimal temperature stratification in the storage tank and a high return tem...

Read more

LK 823 ThermoVar®

  • Variants
  • Detailed Information
  • Documentation
  • Videos
  • Accessories & Spare parts

Variants

LK 823 - Female thread

LK 823 - Female thread 7 variants

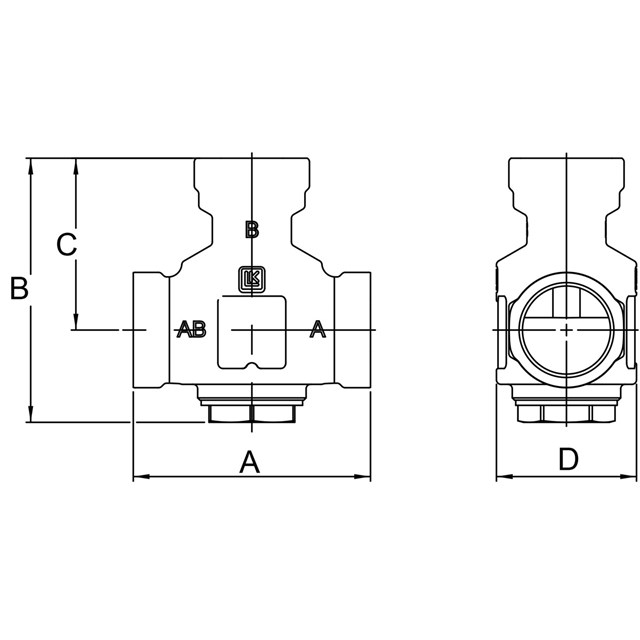

Article Opening temp. °C Dim. Kvs m³/h A mm B mm C mm D mm Weight (kg) Dimensional sketch Item List
181284 45 F 1" 9,0 92 114 72.5 Ø 55 1.0
181288 45 F 1¼" 12,0 105 117 76 Ø 62 1.2
181285 50 F 1" 9,0 92 114 72.5 Ø 55 1.0
181286 55 F 1" 9,0 92 114 72.5 Ø 55 1.0
181290 55 F 1¼" 12,0 105 117 76 Ø 62 1.2
181287 60 F 1" 9,0 92 114 72.5 Ø 55 1.0
181291 60 F 1¼" 12,0 105 117 76 Ø 62 1.2

181284

Opening temp. °C 45
Dim. F 1"
Kvs m³/h 9,0
A mm 92
B mm 114
C mm 72.5
D mm Ø 55
Weight (kg) 1.0
Dimensional sketch
Item list

181288

Opening temp. °C 45
Dim. F 1¼"
Kvs m³/h 12,0
A mm 105
B mm 117
C mm 76
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

181285

Opening temp. °C 50
Dim. F 1"
Kvs m³/h 9,0
A mm 92
B mm 114
C mm 72.5
D mm Ø 55
Weight (kg) 1.0
Dimensional sketch
Item list

181286

Opening temp. °C 55
Dim. F 1"
Kvs m³/h 9,0
A mm 92
B mm 114
C mm 72.5
D mm Ø 55
Weight (kg) 1.0
Dimensional sketch
Item list

181290

Opening temp. °C 55
Dim. F 1¼"
Kvs m³/h 12,0
A mm 105
B mm 117
C mm 76
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

181287

Opening temp. °C 60
Dim. F 1"
Kvs m³/h 9,0
A mm 92
B mm 114
C mm 72.5
D mm Ø 55
Weight (kg) 1.0
Dimensional sketch
Item list

181291

Opening temp. °C 60
Dim. F 1¼"
Kvs m³/h 12,0
A mm 105
B mm 117
C mm 76
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

Other temperatures and dimensions on request.

LK 823 - Male thread

LK 823 - Male thread 9 variants

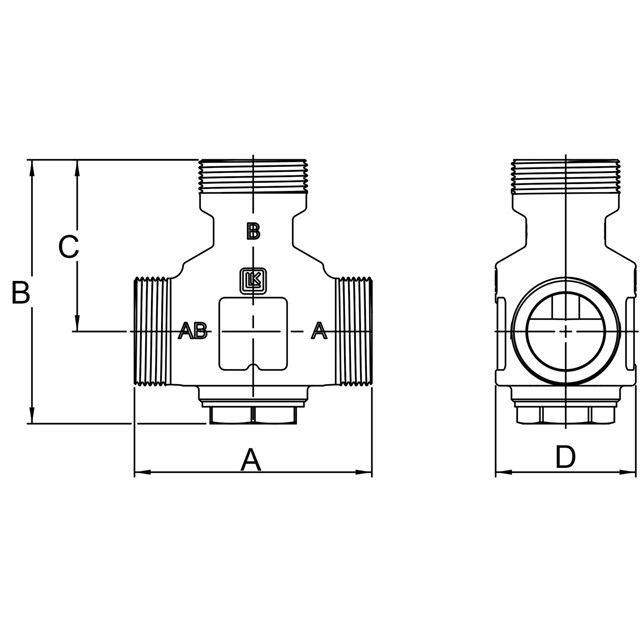

Article Opening temp. °C Dim. Kvs m³/h A mm B mm C mm D mm Weight (kg) Dimensional sketch Item List
182163 45 M 1" 9,0 84 103.5 62 Ø 55 1.0
181300 45 M 1½" 12,0 105 117 76 Ø 62 1.2
182130 45 M 1¼" 9,0 92 110.5 69 Ø 62 1.2
182164 50 M 1" 9,0 84 103.5 62 Ø 55 1.0
182131 50 M 1¼" 9,0 92 110.5 69 Ø 62 1.2
181302 55 M 1½" 12,0 105 117 76 Ø 62 1.2
182132 55 M 1¼" 9,0 92 110.5 69 Ø 62 1.2
181303 60 M 1½" 12,0 105 117 76 Ø 62 1.2
181538 65 M 1½" 12,0 105 117 76 Ø 62 1.2

182163

Opening temp. °C 45
Dim. M 1"
Kvs m³/h 9,0
A mm 84
B mm 103.5
C mm 62
D mm Ø 55
Weight (kg) 1.0
Dimensional sketch
Item list

181300

Opening temp. °C 45
Dim. M 1½"
Kvs m³/h 12,0
A mm 105
B mm 117
C mm 76
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

182130

Opening temp. °C 45
Dim. M 1¼"
Kvs m³/h 9,0
A mm 92
B mm 110.5
C mm 69
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

182164

Opening temp. °C 50
Dim. M 1"
Kvs m³/h 9,0
A mm 84
B mm 103.5
C mm 62
D mm Ø 55
Weight (kg) 1.0
Dimensional sketch
Item list

182131

Opening temp. °C 50
Dim. M 1¼"
Kvs m³/h 9,0
A mm 92
B mm 110.5
C mm 69
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

181302

Opening temp. °C 55
Dim. M 1½"
Kvs m³/h 12,0
A mm 105
B mm 117
C mm 76
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

182132

Opening temp. °C 55
Dim. M 1¼"
Kvs m³/h 9,0
A mm 92
B mm 110.5
C mm 69
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

181303

Opening temp. °C 60
Dim. M 1½"
Kvs m³/h 12,0
A mm 105
B mm 117
C mm 76
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

181538

Opening temp. °C 65
Dim. M 1½"
Kvs m³/h 12,0
A mm 105
B mm 117
C mm 76
D mm Ø 62
Weight (kg) 1.2
Dimensional sketch
Item list

Other temperatures and dimensions on request.

Detailed Information

Description

LK 823 ThermoVar® is a 3-way thermic loading valve for solid fuel/storage tank installations. The valve is intended to ensure both an optimal temperature stratification in the storage tank and a high return temperature to the boiler, thus increasing the efficiency of the system. Tarring and condensation are prevented which prolongs boiler life.

The valve regulates on two ports, which means that there is no need for a balancing valve in the cirucit between boiler and loading valve. The thermostatic element starts to open port A when the outgoing mixed water temperature in port AB reaches the opening temperature. Port B is closed when the temperature in port A exceeds the nominal opening temperature by 10 °C.

LK 823 can be equipped with an insulation - see under ­Accessories. For more information, please see the product sheet for insulations.

The valve can be mounted at any angle. LK 823 ThermoVar® is for right- or left-hand mounting.

Technical Data

Leakage: < 0.5% of Kvs at 100 kPa
Max. working pressure: 1.0 MPa (10 bar)
Max. differential pressure: 100 kPa (1 bar)
Working temperature: (45 - 55 °C) Min. 5 °C/Max. 95 °C
(60 - 70 °C) Min. 5 °C/Max. 110 °C
Opening temperature: 45 °C, 50 °C, 55 °C, 60 °C, 65 °C or 70 °C
Ambient temperature: Min. 5 °C/Max. 60 °C
Thread standard: Rp - female thread, G - male thread
Media 1: Water - Glycol mixture max. 50%
Material, valve body: Brass EN 1982 CB753S
Material, internal cover: Brass EN 12165 CW617N
Material, sealing: EPDM

Application

Technical Diagrams

Capacity Diagram

Documentation

Product sheet

LK 823 ThermoVar®

Instruction manual

823 ThermoVar - Instruction_248218

Certificate/Type approval

CE Declaration of Conformity - 820, 821, 823, 825.pdf

Applications

Biofuel ENG

Accessories & Spare parts

Article no. Article Position
187102 Thermostatic element 823, 45 °C 1
187103 Thermostatic element 823, 50 °C 1
187104 Thermostatic element 823, 55 °C 1
187105 Thermostatic element 823, 60°C 1
187138 Thermostatic element 823, 65 °C 1
187139 Thermostatic element 823, 70 °C 1
187109 Insulation, DN 25-32 2
095351 LK 823 Pump connection 1¼" 3
095352 LK 823 Pump connection 1" 3
