LK 360 NetMag

New

LK 360 NetMag

  • Extend the service life of your heating system
  • Energy-saving
  • Rotatable filter housing, can be installed vertically and horizontally

The LK 360 NetMag is a magnetic cyclone filter that effectively protects your boiler and other components in your heating system by trapping dirt and magnetite. LK 360 shall be installed on on the return pipe ...

Read more

LK 360 NetMag

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

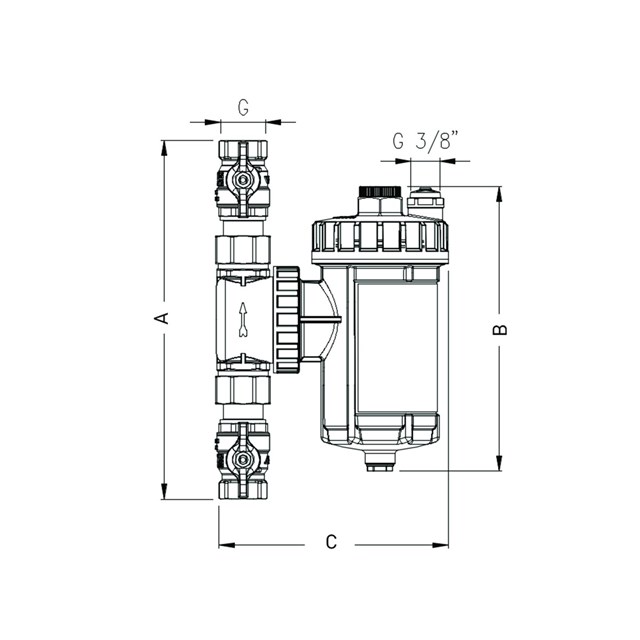

LK 360 - Female thread

LK 360 - Female thread 3 variants

Article Dim. DN Kvs m³/h A mm B mm C mm Weight (kg) Dimensional sketch Item List
50801619 F ¾" 20 6,81 237 190 153 1.2
50801620 F 1" 25 7,51 253 190 153 1.3
50801621 F 1 ¼" 32 7,51 256 190 153 1.3

50801619

Dim. F ¾"
DN 20
Kvs m³/h 6,81
A mm 237
B mm 190
C mm 153
Weight (kg) 1.2
Dimensional sketch
Item list

50801620

Dim. F 1"
DN 25
Kvs m³/h 7,51
A mm 253
B mm 190
C mm 153
Weight (kg) 1.3
Dimensional sketch
Item list

50801621

Dim. F 1 ¼"
DN 32
Kvs m³/h 7,51
A mm 256
B mm 190
C mm 153
Weight (kg) 1.3
Dimensional sketch
Item list

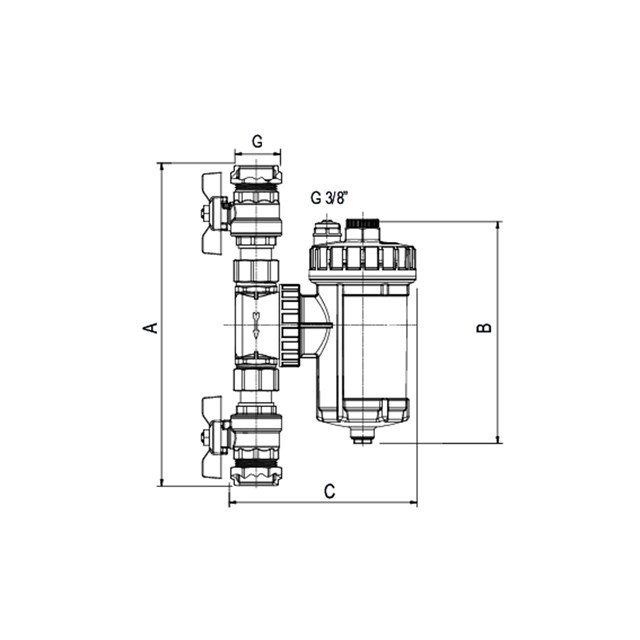

LK 360 - Compression Fitting

LK 360 - Compression Fitting 2 variants

Article Dim. Kvs m³/h A mm B mm C mm Weight (kg) Dimensional sketch Item List
50802032 22 mm 6,81 240 190 153 1.2
50802033 28 mm 7,51 273 190 153 1.3

50802032

Dim. 22 mm
Kvs m³/h 6,81
A mm 240
B mm 190
C mm 153
Weight (kg) 1.2
Dimensional sketch
Item list

50802033

Dim. 28 mm
Kvs m³/h 7,51
A mm 273
B mm 190
C mm 153
Weight (kg) 1.3
Dimensional sketch
Item list

Detailed Information

Description

The LK 360 NetMag is a magnetic cyclone filter that effectively protects your boiler and other components in your heating system by trapping dirt and magnetite.

LK 360 shall be installed on on the return pipe at the boiler inlet to protect the boiler from contamination. The filter housing is rotatable and can be installed vertically or horizontally, making it suitable for most spaces.

Technical Data

Max. working pressure: 0.4 MPa (4 bar)
Working temperature: 0-90 °C
Thread standard: G - female thread, ISO 228/1
Media 1: Water - Glycol mixture max. 30%
Material, valve body: Nickel-plated Brass EN 12165 CW617N
Material, filter element: Polyamide PA66
Material, ball valve: Nickle-plated brass CW617N
Material, magnet: Neodymium 11,000 gauss
Other data: Ball valve Nickle-plated brass CW617N
Magnet Neodymium 11,000 gauss

Application

Technical Diagrams

Pressure drop diagram

Documentation

Product sheet

LK 360 NetMag

Instruction manual

360 NetMag - Instruction

Accessories & Spare parts

Article no. Article Position
095501 Insulation 1
095500 Magnet 2
