LK 212 SolarStation
LK 212 SolarStation
LK 212 SolarStation
LK 212 SolarStation
LK 212 SolarStation

New

LK 212 SolarStation

  • Reduced energy costs by using solar power
  • Adapted for 180 mm circulation pump.
  • Connections with 3/4” female thread and 1” male thread

LK 212 SolarStation is a compact dual-pipe solar pump unit. It contains all the necessary components for a safe operation and control of the solar heating system such as safety group, 180 mm circulating pump, b...

Read more

LK 212 SolarStation

  • Variants
  • Detailed Information
  • Documentation
  • Videos
  • Accessories & Spare parts

Variants

LK 212 - Female / male thread - without pump and controller

LK 212 - Female / male thread - without pump and controller 1 artikel

Article Dim. Flow range Note Weight (kg) Item List
299999 F ¾" / M 1" 2-12 l/min. Without pump and controller 3.6

299999

Dim. F ¾" / M 1"
Flow range 2-12 l/min.
Note Without pump and controller
Weight (kg) 3.6
Item list
LK 212 - Female / male thread - without controller

LK 212 - Female / male thread - without controller 2 variants

Article Dim. Flow range Note Weight (kg) Item List
299998 F ¾" / M 1" 2-12 l/min. With Grundfos pump, without controller 5.6
396039 F ¾" / M 1" 2-12 l/min. With Wilo pump, without controller 5.6

299998

Dim. F ¾" / M 1"
Flow range 2-12 l/min.
Note With Grundfos pump, without controller
Weight (kg) 5.6
Item list

396039

Dim. F ¾" / M 1"
Flow range 2-12 l/min.
Note With Wilo pump, without controller
Weight (kg) 5.6
Item list
LK 212 - Female / male thread - with LK 152 SmartSolar SLL

LK 212 - Female / male thread - with LK 152 SmartSolar SLL 2 variants

Article Dim. Flow range Note Weight (kg) Item List
396000 F ¾" / M 1" 2-12 l/min. With LK 152 SmartSolar SLL, Grundfos pump 6.0
396040 F ¾" / M 1" 2-12 l/min. With LK 152 SmartSolar SLL, Wilo pump 6.0

396000

Dim. F ¾" / M 1"
Flow range 2-12 l/min.
Note With LK 152 SmartSolar SLL, Grundfos pump
Weight (kg) 6.0
Item list

396040

Dim. F ¾" / M 1"
Flow range 2-12 l/min.
Note With LK 152 SmartSolar SLL, Wilo pump
Weight (kg) 6.0
Item list
LK 212 - Female / male thread - with LK 152 SmartSolar CS Plus

LK 212 - Female / male thread - with LK 152 SmartSolar CS Plus 2 variants

Article Dim. Flow range Note Weight (kg) Item List
396050 F ¾" x M 1" 2-12 l/min. With LK 152 SmartSolar CS Plus, Wilo pump 6.0
396051 F ¾" / M 1" 2-12 l/min. With LK 152 SmartSolar CS Plus, Grundfos pump 6.0

396050

Dim. F ¾" x M 1"
Flow range 2-12 l/min.
Note With LK 152 SmartSolar CS Plus, Wilo pump
Weight (kg) 6.0
Item list

396051

Dim. F ¾" / M 1"
Flow range 2-12 l/min.
Note With LK 152 SmartSolar CS Plus, Grundfos pump
Weight (kg) 6.0
Item list

Detailed Information

Description

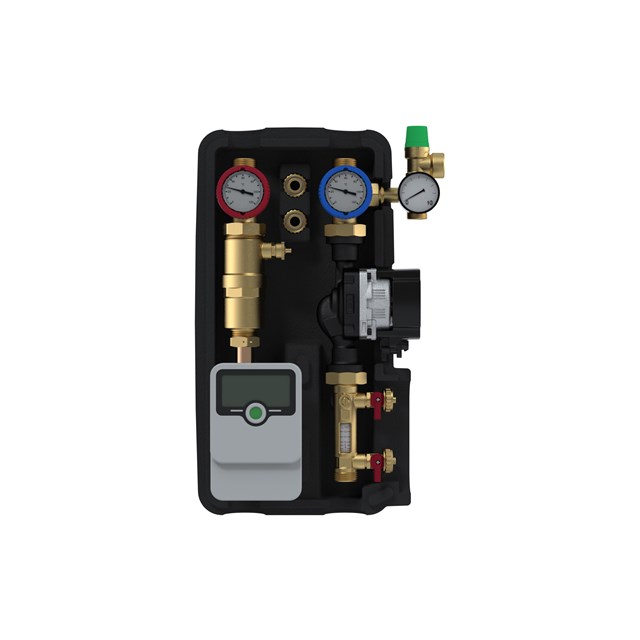

LK 212 SolarStation is a compact dual-pipe solar pump unit. It contains all the necessary components for a safe operation and control of the solar heating system such as safety group, 180 mm circulating pump, ball valve with integrated check valve and thermometer, air separator with manual air vent connection, flow meter with shut-off, filling and drainage valves.

Option of selecting between two different controllers, LK 152 SmartSolar SLL or LK 152 SmartSolar CS Plus. A variant without a controller and/or circulation pump is also optional if you wish to supply it yourself.

LK 152 SmartSolar SLL and SC Plus has both 10 preset hydraulic schedules. The chosen hydraulic schedule and operating status is shown on the display.

Technical Data

Voltage: 230 VAC ± 10%, 50 Hz
Max. working pressure: 1,0 MPa (10 bar)
Operating pressure: 0,6 MPa (6 bar)
Working temperature: Supply: Max. 140 °C
Return: Max. 110 °C
Thread standard: G - male thread, G - female thread
Protection type: IP 20
Media 1: Water - Glycol mixture max. 50%
Sensors: PT 1000
Circulating pumps: Grundfos UPM3 Solar 25-75 180, Wilo Para ST 25-180/8 IPWM2

Application

LK 212 SolarStation with LK 152 SmartSolar SLL

LK 212 SolarStation with LK 152 SmartSolar CS Plus

LK 212 SolarStation without controller

LK 152 SmartSolar SLL

LK 152 SmartSolar CS Plus

Documentation

Product sheet

LK 212 SolarStation

Instruction manual

212 SolarStation - Instruction_248353

Instruction manual

11217172_LK SmartSolar CS_Plus_FR_Instruction

Instruction manual

11217169_LK SmartSolar SLL_FR_Instruction

Instruction manual

11217135_LK SmartSolar SLL_EN_Instruction

Instruction manual

11215246_LK SmartSolar CS Plus_EN_Instruction

Accessories & Spare parts

Article no. Article Position
182675 LK 152 SmartSolar SLL 1
182735 LK 152 SmartSolar CS Plus 2
187325 Bracket 3
095470 Grundfos UPM3 Solar 25-75 180 4
095471 Wilo Para ST 25-180/8 IPWM2 5
095473 Ballvalve, red 6
095474 Ballvalve, blue 7
095475 EPP Insulation 8
095477 Air vent 9
095478 Safety group 10
095479 Filling valve 11
