LK HydronicGroup C/C 90 Cooling

LK HydronicGroup C/C 90 Cooling

  • Adapted for cooling
  • Easy to install
  • Easy to combine with electronic regulation

LK HydronicGroup is a complete pump group that is suitable for cooling systems where mixed supply is desirable. By running the brine in the collector hose to a fan coil, you can cool your home with the cold na...

Read more

LK HydronicGroup C/C 90 Cooling

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

LK 862 Cooling - Pump group with mixed supply. Right version

LK 862 Cooling - Pump group with mixed supply. Right version 1 artikel

Article Dim. Kvs m³/h Note Weight (kg) Item List
299387 F 1" x M 1" 6,3 /10,0 Wilo PARA 15-130/8-75/SC-9 4.0

299387

Dim. F 1" x M 1"
Kvs m³/h 6,3 /10,0
Note Wilo PARA 15-130/8-75/SC-9
Weight (kg) 4.0
Item list

Detailed Information

Description

LK HydronicGroup is a complete pump group that is suitable for cooling systems where mixed supply is desirable.

By running the brine in the collector hose to a fan coil, you can cool your home with the cold naturally found in the ground. In addition, the borehole is recharged during the summer, which increases the performance of the heat pump.

HydronicGroup C/C 90 Cooling is suitable to combine with the LK 322 CoolUnit which ensures the liquid is run in the right direction.

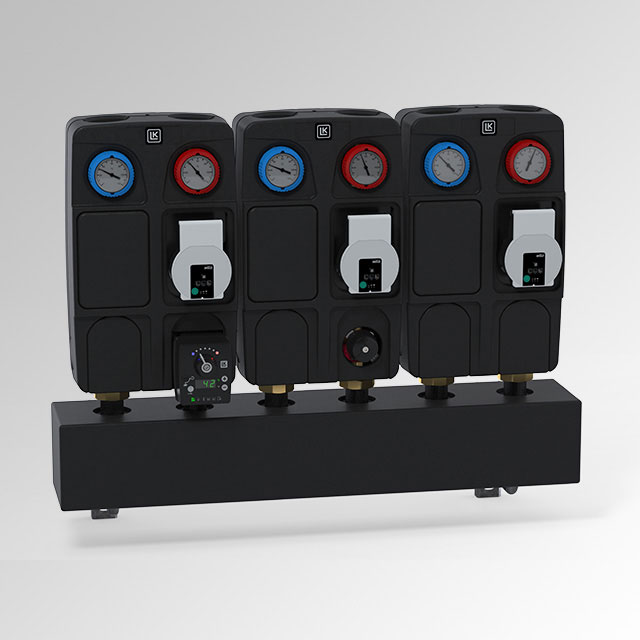

LK HydronicGroup comprises a high efficient circulation pump, insulation, wall mounting bracket and two ball valves with thermometer. In the model where mixed supply is desired, a three-way mixing valve is included.

Technical Data

Voltage: 230 VAC 50/60 Hz
Power consumption: 10-75 W depending on pump speed
Leakage: < 0,2% of Kvs at 100 kPa
Max. working pressure: 1.0 MPa (10 bar)
Working temperature: Min. -15 °C/Max. 100 °C
Supply temperature: Min. 5 °C
Ambient temperature: Min. 5 °C/Max. 58 °C
Thread standard: Rp - female thread
Media 1: Water - Glycol mixture max. 50%
Circulating pumps: Wilo Para 15-130/8-75/SC-9
Material, valve body: Brass EN 12165 CW617N
Other data: Cooling efficiency: 7 kW (ΔT 10 °C 10 l/min.)
Cooling efficiency: 7 kW (ΔT 10 °C 10 l/min.)

Application

PUMP GROUP FOR PASSIVE COOLING

Technical Diagrams

Capacity Diagram

Documentation

Product sheet

LK HydronicGroup C/C 90 Cooling

Brochure

Pump Groups_ENG

Instruction manual

862 HydronicGroup 90 C - Instruction_248190

Applications

Heat pump ENG

Accessories & Spare parts

Article no. Article Position
187227 Wilo PARA 15-130/8-75/SC-9 1
187228 Taco ES2C 15-70-130 1
187229 Bracket for manifold 2
187230 EPP Insulation 3
187231 Ballvalve, LK 316 F1” / F1” 4
095018 Thermometer T40, 0 - 80 °C 5
182765 LK 850 ThermoMix HG Kvs 6,3/10 6
187190 Repair kit LK 840 DN 15-20 7
092366 LK 322 CoolUnit 1" 8
