LK HydronicGroup C/C 125 Cooling

Upcoming News

LK HydronicGroup C/C 125 Cooling

  • For both cooling and heating applications
  • Pipe is cataphoresis-treated to resist corrosion
  • Easy to combine with electronic regulation

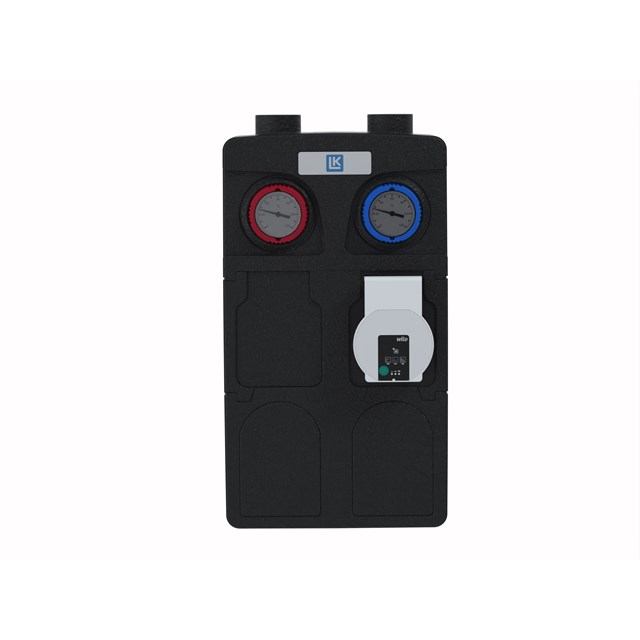

LK HydronicGroup C/C 125 Cooling is a complete pump group that is suitable for heating and cooling where direct supply or mixed supply is desirable. Consists of a highly efficient circulation pump, insulation, ...

Read more

LK HydronicGroup C/C 125 Cooling

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

LK 860 - Manifold - Cataphoresis treated

LK 860 - Manifold - Cataphoresis treated 7 variants

Article Type Dim. A mm B mm Note Weight (kg) C mm Dimensional sketch Item List
50802085 Manifold, 1 pc groups with hydraulic separator M 1½" 294 125 0.4 MPa (4 bar) 2.5
50802086 Manifold, 2 pc groups, without hydraulic separator M 1½" 594 125 0.4 MPa (4 bar) 6.0 500
50802087 Manifold, 2 pc groups with hydraulic separator M 1½" 594 375 0.4 MPa (4 bar) 7.0 250
50802088 Manifold, 3 pc groups, without hydraulic separator M 1½" 844 125 0.4 MPa (4 bar) 8.0 500
50802089 Manifold, 3 pc groups, with hydraulic separator M 1½" 844 625 0.4 MPa (4 bar) 9.0 500
50802090 Manifold, 4 pc groups, without hydraulic separator M 1½" 1094 125 0.4 MPa (4 bar) 9.0 750
50802091 Manifold, 4 pc groups, with hydraulic separator M 1½" 1094 875 0.4 MPa (4 bar) 10.0 750

50802085

Type Manifold, 1 pc groups with hydraulic separator
Dim. M 1½"
A mm 294
B mm 125
Note 0.4 MPa (4 bar)
Weight (kg) 2.5
C mm
Dimensional sketch
Item list

50802086

Type Manifold, 2 pc groups, without hydraulic separator
Dim. M 1½"
A mm 594
B mm 125
Note 0.4 MPa (4 bar)
Weight (kg) 6.0
C mm 500
Dimensional sketch
Item list

50802087

Type Manifold, 2 pc groups with hydraulic separator
Dim. M 1½"
A mm 594
B mm 375
Note 0.4 MPa (4 bar)
Weight (kg) 7.0
C mm 250
Dimensional sketch
Item list

50802088

Type Manifold, 3 pc groups, without hydraulic separator
Dim. M 1½"
A mm 844
B mm 125
Note 0.4 MPa (4 bar)
Weight (kg) 8.0
C mm 500
Dimensional sketch
Item list

50802089

Type Manifold, 3 pc groups, with hydraulic separator
Dim. M 1½"
A mm 844
B mm 625
Note 0.4 MPa (4 bar)
Weight (kg) 9.0
C mm 500
Dimensional sketch
Item list

50802090

Type Manifold, 4 pc groups, without hydraulic separator
Dim. M 1½"
A mm 1094
B mm 125
Note 0.4 MPa (4 bar)
Weight (kg) 9.0
C mm 750
Dimensional sketch
Item list

50802091

Type Manifold, 4 pc groups, with hydraulic separator
Dim. M 1½"
A mm 1094
B mm 875
Note 0.4 MPa (4 bar)
Weight (kg) 10.0
C mm 750
Dimensional sketch
Item list
LK 861 Cooling - Pump group with direct supply

LK 861 Cooling - Pump group with direct supply 2 variants

Article Dim. DN Note Weight (kg) Item List
396427 M 1½" / F 1" x M 1½" DN 25 Wilo Para 25-180/6 5.1
396428 M 1½" / F 1" x M 1½" DN 32 Wilo Para 25-180/8 5.3

396427

Dim. M 1½" / F 1" x M 1½"
DN DN 25
Note Wilo Para 25-180/6
Weight (kg) 5.1
Item list

396428

Dim. M 1½" / F 1" x M 1½"
DN DN 32
Note Wilo Para 25-180/8
Weight (kg) 5.3
Item list
LK 861 Cooling - Pump group with direct supply. Without pump

LK 861 Cooling - Pump group with direct supply. Without pump 1 artikel

Article Dim. Weight (kg) Item List
396200 M 1½" / F 1" x M 1½" 3.3

396200

Dim. M 1½" / F 1" x M 1½"
Weight (kg) 3.3
Item list
LK 862 Cooling - Pump group with mixed supply. Right version

LK 862 Cooling - Pump group with mixed supply. Right version 2 variants

Article Dim. DN Kvs m³/h Circulating Pump Weight (kg) Item List
396425 M 1½" / F 1" x M 1½" DN 25 6,3 Wilo Para 25-180/6-43/SC-12 5.8
396426 M 1½" / F 1" x M 1½" DN 32 10,0 Wilo Para 25-180/8-75/SC-12 5.8

396425

Dim. M 1½" / F 1" x M 1½"
DN DN 25
Kvs m³/h 6,3
Circulating Pump Wilo Para 25-180/6-43/SC-12
Weight (kg) 5.8
Item list

396426

Dim. M 1½" / F 1" x M 1½"
DN DN 32
Kvs m³/h 10,0
Circulating Pump Wilo Para 25-180/8-75/SC-12
Weight (kg) 5.8
Item list
LK 862 Cooling - Pump group with mixed supply. Without pump

LK 862 Cooling - Pump group with mixed supply. Without pump 2 variants

Article Dim. Kvs m³/h Weight (kg) Item List
396199 M 1½" / F 1" x M 1½" 6,3 4.0
396424 M 1½" / F 1" x M 1½" 10,0 4.0

396199

Dim. M 1½" / F 1" x M 1½"
Kvs m³/h 6,3
Weight (kg) 4.0
Item list

396424

Dim. M 1½" / F 1" x M 1½"
Kvs m³/h 10,0
Weight (kg) 4.0
Item list
LK 862 Cooling - Pump group with mixed supply. With LK 950 Valve Actuator

LK 862 Cooling - Pump group with mixed supply. With LK 950 Valve Actuator 2 variants

Article Dim. DN Kvs m³/h Circulating Pump Note Weight (kg) Item List
396465 M 1½" / F 1" x M 1½" DN 25 6,3 Wilo Para 25-180/6-43/SC-12 180756 LK 950 Actuator 6.2
396466 M 1½" / F 1" x M 1½" DN 25 6,3 Wilo Para ST 25-180/8 IPWM2 180756 LK 950 Actuator 6.2

396465

Dim. M 1½" / F 1" x M 1½"
DN DN 25
Kvs m³/h 6,3
Circulating Pump Wilo Para 25-180/6-43/SC-12
Note 180756 LK 950 Actuator
Weight (kg) 6.2
Item list

396466

Dim. M 1½" / F 1" x M 1½"
DN DN 25
Kvs m³/h 6,3
Circulating Pump Wilo Para ST 25-180/8 IPWM2
Note 180756 LK 950 Actuator
Weight (kg) 6.2
Item list

Detailed Information

Description

LK HydronicGroup C/C 125 Cooling is a complete pump group that is suitable for heating and cooling where direct supply or mixed supply is desirable. Consists of a highly efficient circulation pump, insulation, and two ball valves with thermo­meter, on the return side there is an integrated check valve. Cataphoresis-treated pipe to resist corrosion. When installing LK HydronicGroup c/c 125 Cooling onto the LK 860 manifold, the mounting kit (part no. 095515) should be used to prevent condensation.

LK 861 Cooling, pump group where direct supply is desired.

LK 862 Cooling, pump group where mixed supply is desired, a three-way mixing valve is included. For cooling applications, LK 862 Cooling must be supplemented with actuator, LK 950 or LK SmartComfort, so condensation does not leak into the insulation and forms frost.

Insulation is only suitable for Wilo PARA 6 and 8 meter.

Technical Data

Voltage: 230 VAC 50/60 Hz
Power consumption: 10-75 W depending on pump speed
Max. working pressure: 1.0 MPa (10 bar)
Working temperature: Min. 5 °C/Max. 95 °C
Ambient temperature: Min. 5 °C/Max. 58 °C
Thread standard: Rp - female thread, G - male thread
Media 1: Water - Glycol mixture max. 50%
Circulating pumps: Wilo Para 25-180/6-43/SC-12, Wilo Para 25-180/8-75/SC-12
Material, valve body: Brass EN 12165 CW617N
Material, insulation: Expanded Polypropylene EPP

Application

LK 861 Cooling - Pump group with direct supply

LK 862 - Pump group with mixing valve

LK 861 Left - LK 861 Right

LK 862 Left - LK 862 Right

Technical Diagrams

LK 861 - Pump characteristics

LK 862 - Pump characteristics

Documentation

Product sheet

LK HydronicGroup C/C 125 Cooling

Instruction manual

861-862 LK HydronicGroup C/C 125 Cooling - Instruction_248405

Accessories & Spare parts

Article no. Article Position
187322 Wilo PARA 25-180/6-43/SC 1
187203 Wilo PARA 25-180/8-75/SC 1
187323 Ballvalve, blue 2
187324 Ballvalve, red 2
187188 Sealing kit LK 840/841 DN 25 3
092366 LK 322 CoolUnit 1" 5
095515 Connection kit 5
181242 LK 100 SmartComfort CT 6
180765 LK 950 Actuator 7
182766 LK 840 ThermoMix HG Kvs 6,3 8
182767 LK 840 ThermoMix HG Kvs 10 8
187963 EPP Insulation 9
