Spare parts kits

Spare parts kits

Spare parts kits

Spare parts kits

  • Variants
  • Detailed Information
  • Documentation

Variants

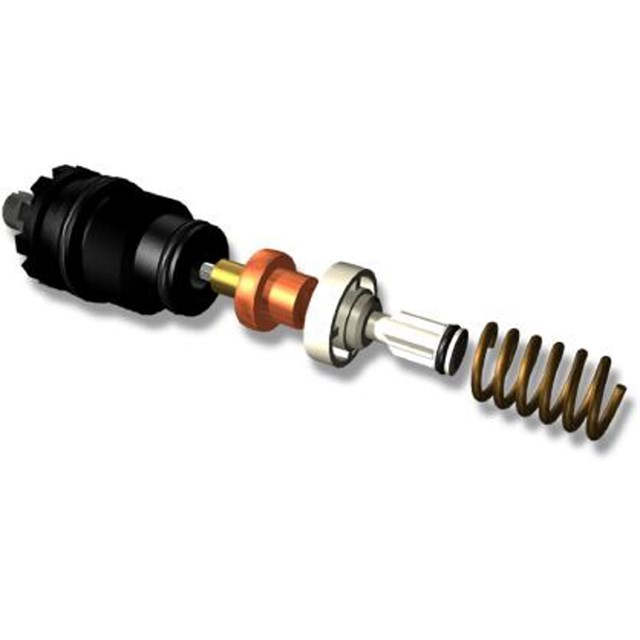

LK 680 - Mixing valve: 550-15 and 22 mm, old model. Mixing valve part: 540

LK 680 - Mixing valve: 550-15 and 22 mm, old model. Mixing valve part: 540 1 artikel

Article Type Note Weight (kg) Item List

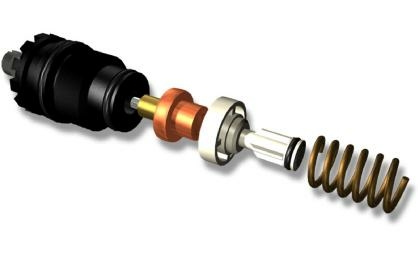

492 07 21 The set includes: • Screw • Drive flange • Sensing unit • Piston • Spring. Fit the parts as shown in the illustration. 0.1

492 07 21

Type The set includes: • Screw • Drive flange • Sensing unit • Piston • Spring.
Note Fit the parts as shown in the illustration.
Weight (kg) 0.1
Item list

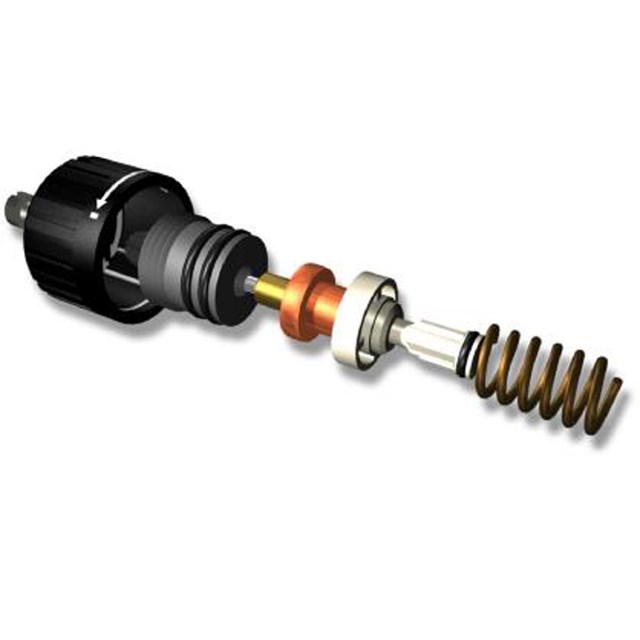

LK 683 - Mixing valve: 545, 550-15 and 22 mm. Mixing valve part: 541, 548

LK 683 - Mixing valve: 545, 550-15 and 22 mm. Mixing valve part: 541, 548 1 artikel

Article Type Note Weight (kg) Item List
492 07 23 The set includes: • Screw • Knob • Drive flange, 2 x • Sensing unit • Piston • Spring. Fit the parts as shown in the illustration. 0.1

492 07 23

Type The set includes: • Screw • Knob • Drive flange, 2 x • Sensing unit • Piston • Spring.
Note Fit the parts as shown in the illustration.
Weight (kg) 0.1
Item list
LK 684 - Shut-off part/Manifold: 508, 509, 548 and 560-15 and 22 mm

LK 684 - Shut-off part/Manifold: 508, 509, 548 and 560-15 and 22 mm 1 artikel

Article Type Note Weight (kg) Item List

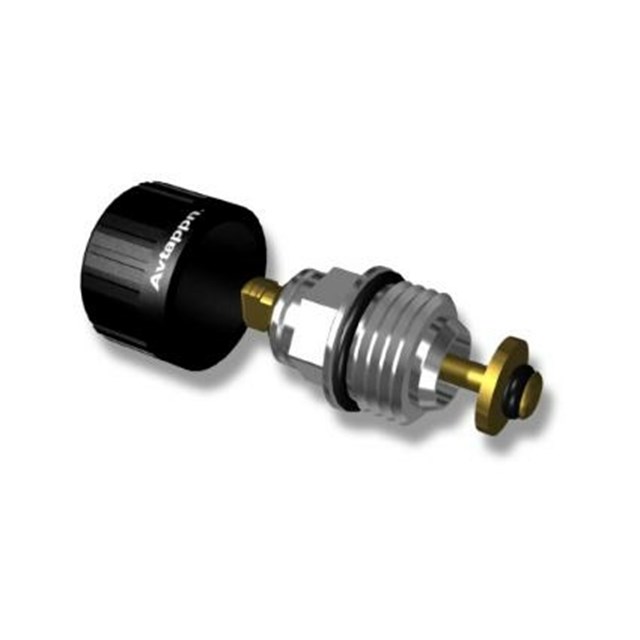

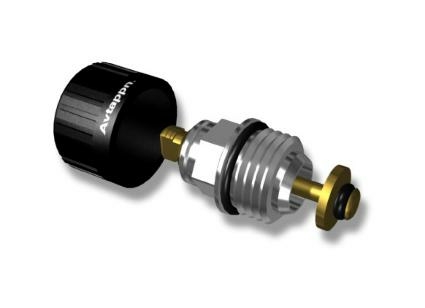

431 17 33 The kit includes: • Cone, 2 pcs • Feather • Valve bonnet • Knob Assemble the details according to sketch and tighten the valve chest with a fixed key. The knob is knocked on lightly with a hammer. The O-rings are lubricated and shall be mounted without grease. 0.1

431 17 33

Type The kit includes: • Cone, 2 pcs • Feather • Valve bonnet • Knob
Note Assemble the details according to sketch and tighten the valve chest with a fixed key. The knob is knocked on lightly with a hammer. The O-rings are lubricated and shall be mounted without grease.
Weight (kg) 0.1
Item list

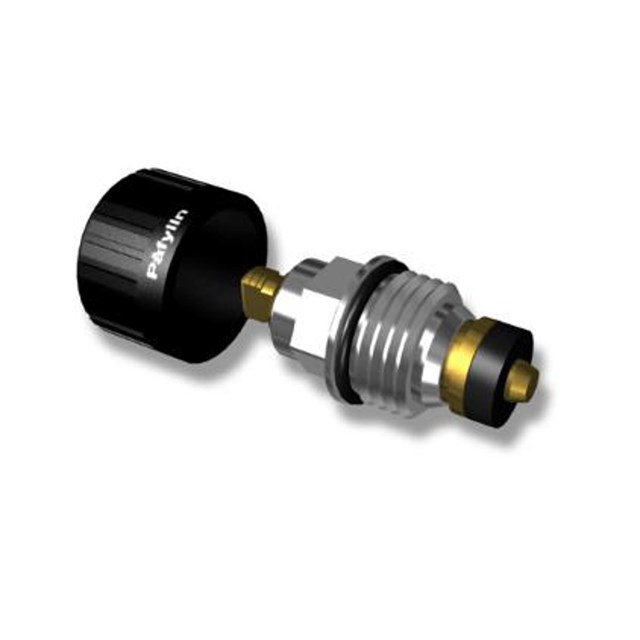

LK 685 - Filling valve: 535 and 536

LK 685 - Filling valve: 535 and 536 1 artikel

Article Type Note Weight (kg) Item List

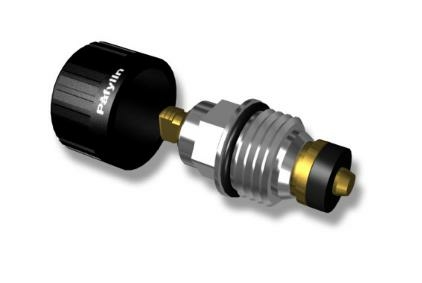

431 17 39 The set includes: • Top piece with fitted spindle and flat gasket • Knob. Fit the parts as shown in the drawing and tighten the top piece with a fixed wrench. The knob is tapped gently with a hammer. The O-rings are lubricated and must be fitted without grease. 0.04

431 17 39

Type The set includes: • Top piece with fitted spindle and flat gasket • Knob.
Note Fit the parts as shown in the drawing and tighten the top piece with a fixed wrench. The knob is tapped gently with a hammer. The O-rings are lubricated and must be fitted without grease.
Weight (kg) 0.04
Item list
LK 688 - Mixing valve: 560-15

LK 688 - Mixing valve: 560-15 1 artikel

Article Type Note Weight (kg) Item List

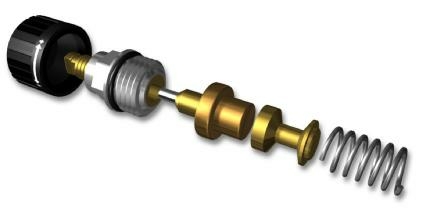

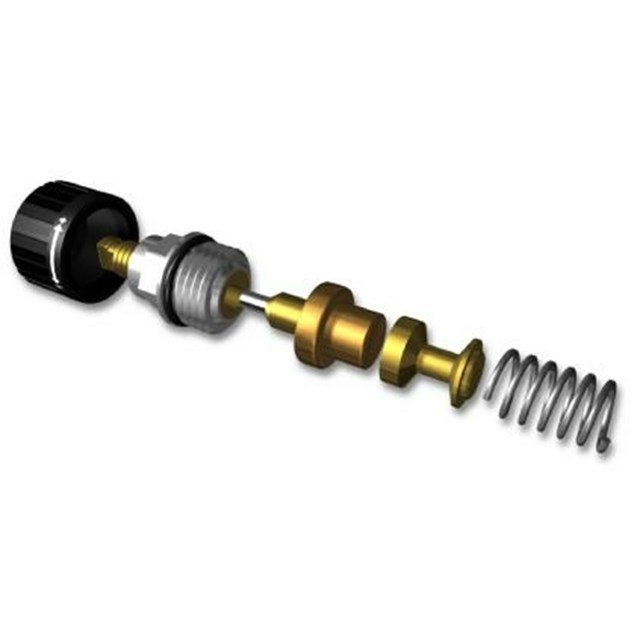

492 07 22 The set includes: • Top piece • Sensing unit • Piston • Spring • Knob. Fit the parts as shown in the illustration and tighten the valve bonnet with a fixed wrench. The knob is tapped gently with a hammer. The O-rings are lubricated and must be fitted without grease. 0.09

492 07 22

Type The set includes: • Top piece • Sensing unit • Piston • Spring • Knob.
Note Fit the parts as shown in the illustration and tighten the valve bonnet with a fixed wrench. The knob is tapped gently with a hammer. The O-rings are lubricated and must be fitted without grease.
Weight (kg) 0.09
Item list
