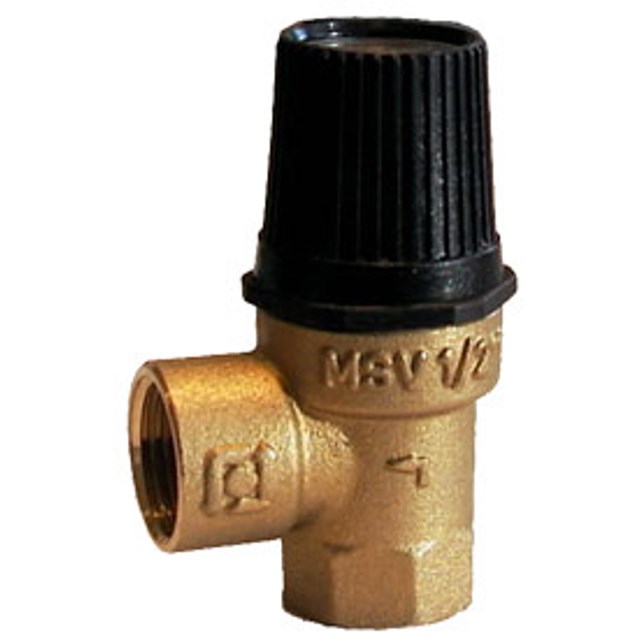

MSV Safety Relief Valve

MSV Safety Relief Valve

Safety valve MSV is a high-lifting and soft-sealing safety valve for tapwater installations plus heating, recovery and cooling systems with only thermal expansion. The valve must not be used for steam.

MSV Safety Relief Valve

  • Variants
  • Detailed Information
  • Documentation
  • Questions & Answers

Variants

MSV - Female thread - Tap Water

MSV - Female thread - Tap Water 2 variants

Article Dim. Opening pressure Discharge capacity Weight (kg) Item List
055175 F ½" 0,4 MPa 119,8 kW 0.1
055176 F ½" 0,6 MPa 166,8 kW 0.1

055175

Dim. F ½"
Opening pressure 0,4 MPa
Discharge capacity 119,8 kW
Weight (kg) 0.1
Item list

055176

Dim. F ½"
Opening pressure 0,6 MPa
Discharge capacity 166,8 kW
Weight (kg) 0.1
Item list
MSV - Female thread - Heating

MSV - Female thread - Heating 7 variants

Article Dim. Opening pressure Discharge capacity Weight (kg) Item List
055169 F ½" 0,1 MPa 47,5 kW 0.1
055170 F ½" 0,15 MPa 0,8 kW 0.1
055171 F ½" 0,2 MPa 71,5 kW 0.1
055172 F ½" 0,25 MPa 84,2 kW 0.1
055174 F ½" 0,35 MPa 107,7 kW 0.1
055175 F ½" 0,4 MPa 119,8 kW 0.1
055176 F ½" 0,6 MPa 166,8 kW 0.1

055169

Dim. F ½"
Opening pressure 0,1 MPa
Discharge capacity 47,5 kW
Weight (kg) 0.1
Item list

055170

Dim. F ½"
Opening pressure 0,15 MPa
Discharge capacity 0,8 kW
Weight (kg) 0.1
Item list

055171

Dim. F ½"
Opening pressure 0,2 MPa
Discharge capacity 71,5 kW
Weight (kg) 0.1
Item list

055172

Dim. F ½"
Opening pressure 0,25 MPa
Discharge capacity 84,2 kW
Weight (kg) 0.1
Item list

055174

Dim. F ½"
Opening pressure 0,35 MPa
Discharge capacity 107,7 kW
Weight (kg) 0.1
Item list

055175

Dim. F ½"
Opening pressure 0,4 MPa
Discharge capacity 119,8 kW
Weight (kg) 0.1
Item list

055176

Dim. F ½"
Opening pressure 0,6 MPa
Discharge capacity 166,8 kW
Weight (kg) 0.1
Item list

Detailed Information

Description

Safety valve MSV is a high-lifting and soft-sealing safety valve for tapwater installations plus heating, recovery and cooling systems with only thermal expansion. The valve must not be used for steam.

The safety valve fits upright or horizontally, i.e. with the valve knob facing up or straight to the side. In the case of horizontal installation, the outlet must be positioned so that water skin cannot form. The connection thread is sealed in the usual way. Otherwise according to applicable national regulations.

The safety valve is maintenance-free, but the opening function must be checked 2 – 3 times a year.
Turn the plastic knob counterclockwise by hand until the valve starts to allow water through. Hold in position and allow the water to flush through for a short time. Then continue to turn the plastic knob until a “click” is heard and the valve closes. This entire opening - closing takes place in approx. ¼ turns.
The safety valve may open after a major drain from the water heater. This is a normal function as the water heater’s cut-off pressure can be reached due to the increasing volume of the water during heating.

Technical Data

Working temperature: Max. 120 °C
Thread standard: G - female thread
Material, valve body: Brass EN 12165 CW617N
Material, sealing: EPDM

Documentation

Product sheet

MSV Safety Relief Valve

Questions & Answers

Can you use LK's safety valves with steam?

None of LK's safety valves are designed to be used with steam.
