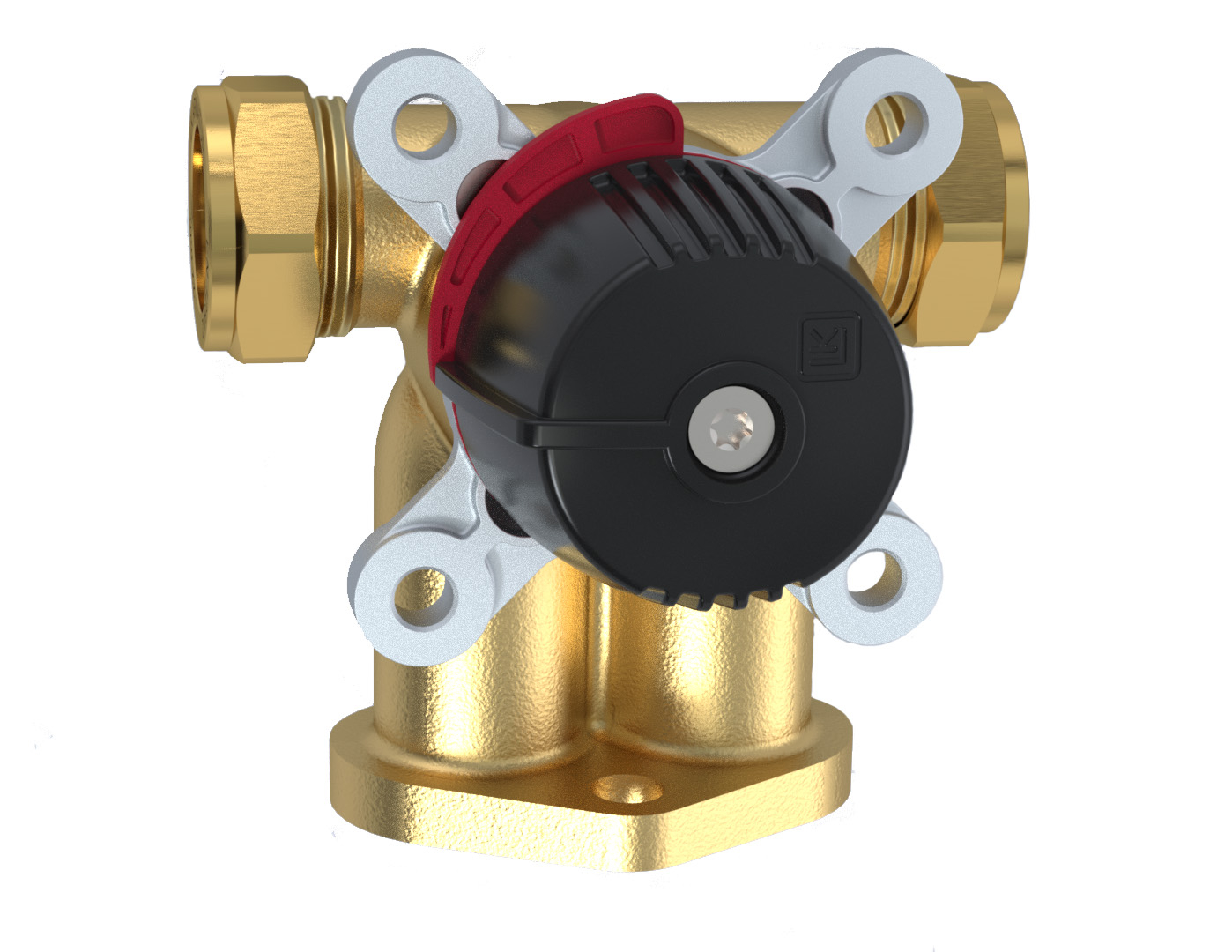

LK 842 ThermoMix® P

LK 842 ThermoMix® P

  • Flange connection
  • Simple motorisation

LK 842 ThermoMix® P is a 4-way mixing valve for mounting on heating boilers. LK 842 ThermoMix® P is suitable for motorization. The valve can be mounted at any angle. LK 842 ThermoMix® P can easily be adapted ...

Read more

LK 842 ThermoMix® P

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts
  • Questions & Answers

Variants

LK 842 - Male thread

LK 842 - Male thread 1 artikel

Article Dim. Kvs m³/h A mm B mm C mm D mm E mm F mm G mm H mm J mm K mm L mm M mm Weight (kg) Dimensional sketch Item List
180879 M ¾" 5,5 84 62 74 97 31 94 30 67 40 57 24 9 0.8

180879

Dim. M ¾"
Kvs m³/h 5,5
A mm 84
B mm 62
C mm 74
D mm 97
E mm 31
F mm 94
G mm 30
H mm 67
J mm 40
K mm 57
L mm 24
M mm 9
Weight (kg) 0.8
Dimensional sketch
Item list
LK 842 - Compression fitting

LK 842 - Compression fitting 2 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm E mm F mm G mm H mm J mm K mm L mm M mm Weight (kg) Dimensional sketch Item List
180880 15 mm 5,5 99 62 74 97 31 94 30 67 40 57 24 9 0.8
180881 22 mm 5,5 99 62 74 97 31 94 30 67 40 57 24 9 0.8

180880

Dim. 15 mm
Kvs m³/h 5,5
A mm 99
B mm 62
C mm 74
D mm 97
E mm 31
F mm 94
G mm 30
H mm 67
J mm 40
K mm 57
L mm 24
M mm 9
Weight (kg) 0.8
Dimensional sketch
Item list

180881

Dim. 22 mm
Kvs m³/h 5,5
A mm 99
B mm 62
C mm 74
D mm 97
E mm 31
F mm 94
G mm 30
H mm 67
J mm 40
K mm 57
L mm 24
M mm 9
Weight (kg) 0.8
Dimensional sketch
Item list

Detailed Information

Description

LK 842 ThermoMix® P is a 4-way mixing valve for mounting on heating boilers.

LK 842 ThermoMix® P is suitable for motorization.

The valve can be mounted at any angle. LK 842 ThermoMix® P can easily be adapted for right- or left-hand mounting.

The valve requires no maintenance but the installation should be checked regularly.

Technical Data

Angle of rotation: 90°
Torque: < 1 Nm
Leakage: < 1.5% of Kvs at 50 kPa
Max. working pressure: 1.0 MPa (10 bar)
Max. differential pressure: 50 kPa (0,5 bar)
Working temperature: Min. 5 °C/Max. 110 °C (120 °C briefly)
Ambient temperature: Min. 5 °C/Max. 60 °C
Thread standard: G - male thread
Media 1: Water - Glycol mixture max. 50% Ethanol mixture max. 30%
Material, valve body: Brass EN 1982 CB753S
Material, internal cover: PPS Composite
Material, external cover: Aluminium
Material, slide/spindle: Brass EN 12165 CW617N
Material, sealing: EPDM
Spindle sealing: Two O-rings

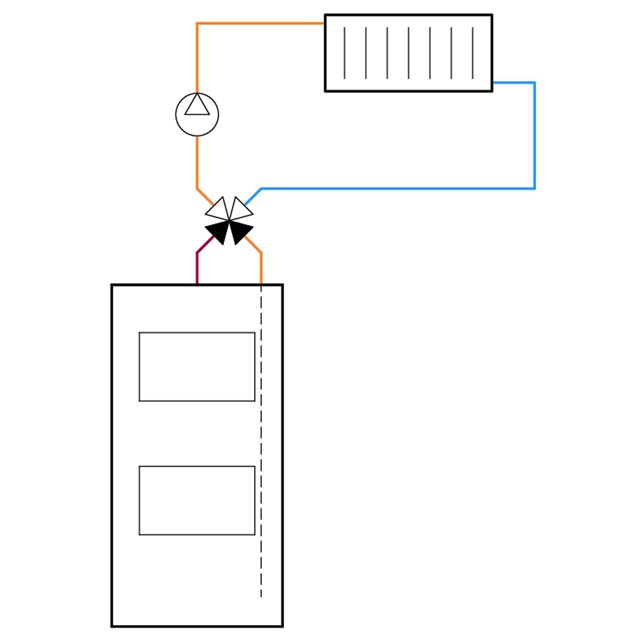

Application

Technical Diagrams

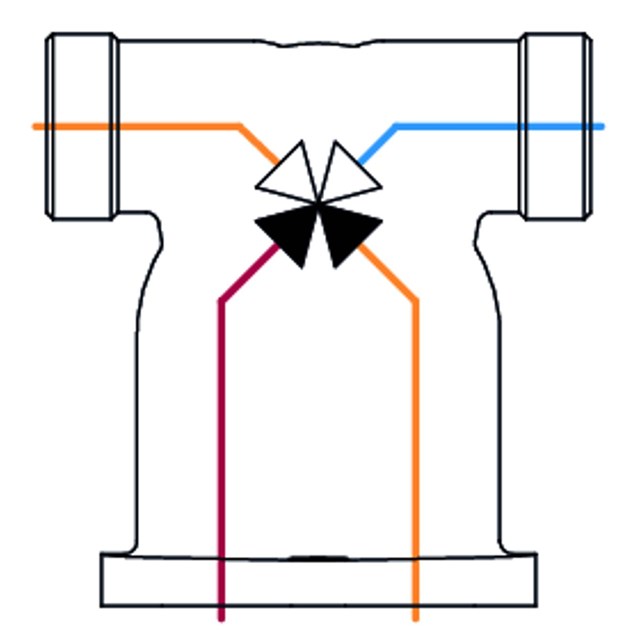

Valve Characteristics

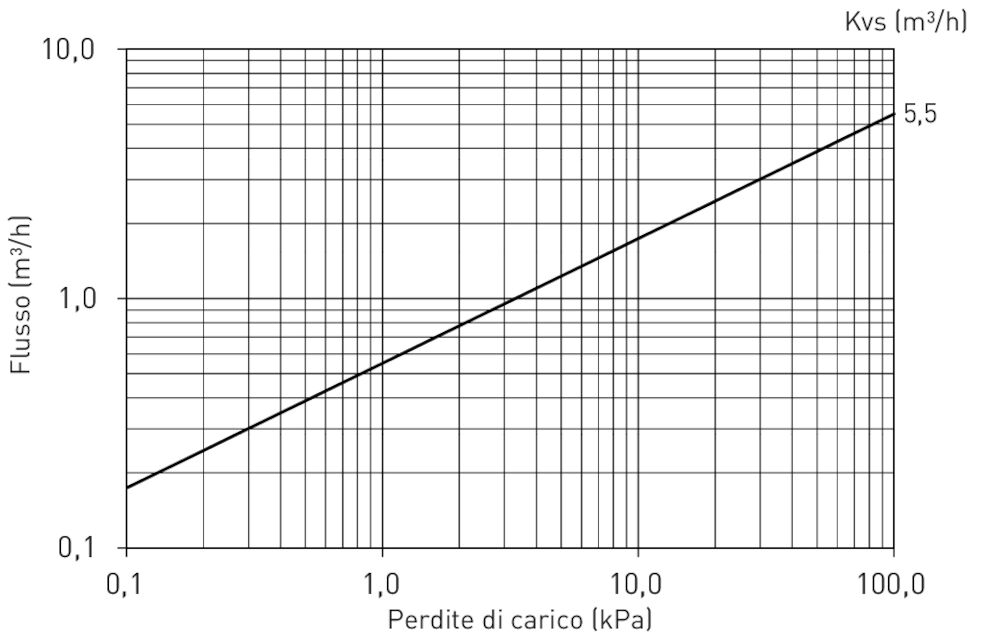

Capacity Diagram

Documentation

Product sheet

LK 842 ThermoMix® P

Instruction manual

842 ThermoMix - Instruction_048959

Certificate/Type approval

CE Declaration of Conformity - 830, 831, 840, 841, 842, 845, 846.pdf

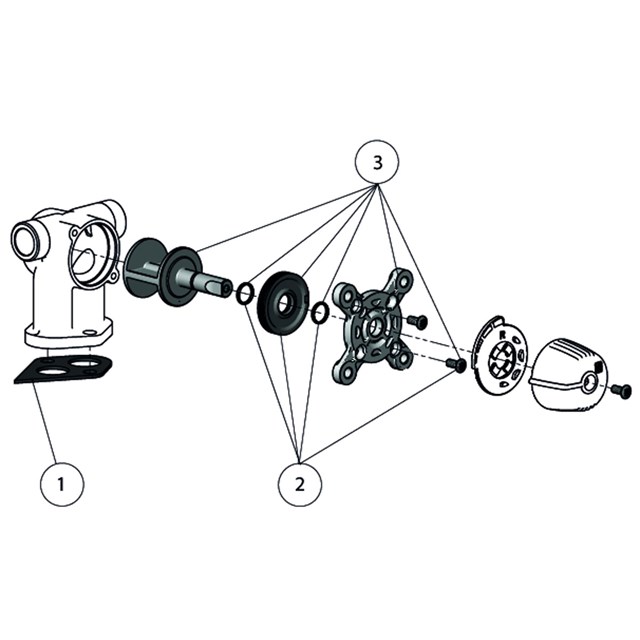

Accessories & Spare parts

Article no. Article Position
013083 Gasket 842 1
187067 Sealing kit 840/841/842, DN 25-32 2
187071 Repair kit 841/842, DN 25-32 3

Questions & Answers

Is the LK SmartComfort compatible with a mixing valve from another manufacturer?

Yes, we provide mounting kits for other models, see Mounting kits on our website.
