LK 816 ThermoKit E

LK 816 ThermoKit E

  • Complete kit
  • Low-energy pump

LK 816 ThermoKit E Eco is a loading group for heating applications with solid fuel boilers and storage tanks. The loading group is intended to ensure a high return temperature as well as an optimal temperature ...

Read more

LK 816 ThermoKit E

  • Variants
  • Detailed Information
  • Documentation

Variants

LK 816 - Grundfos UPML 25-95 - Female thread

LK 816 - Grundfos UPML 25-95 - Female thread 2 variants

Article Dim. Note Weight (kg) Item List
181578 F 1½" Adapter - EU 7.1
181579 F 1½" Adapter - UK 7.1

181578

Dim. F 1½"
Note Adapter - EU
Weight (kg) 7.1
Item list

181579

Dim. F 1½"
Note Adapter - UK
Weight (kg) 7.1
Item list
LK 816 - Grundfos UPML 25-95 - Female thread

LK 816 - Grundfos UPML 25-95 - Female thread 2 variants

Article Dim. Note Weight (kg) Item List
182396 F 1¼" Adapter - EU 7.1
182397 F 1¼" Adapter - UK 7.1

182396

Dim. F 1¼"
Note Adapter - EU
Weight (kg) 7.1
Item list

182397

Dim. F 1¼"
Note Adapter - UK
Weight (kg) 7.1
Item list
LK 816 - Grundfos UPMXL 32-105 - Female thread

LK 816 - Grundfos UPMXL 32-105 - Female thread 2 variants

Article Dim. Note Weight (kg) Item List
181580 F 2" Adapter - EU 11.1
181581 F 2" Adapter - UK 11.1

181580

Dim. F 2"
Note Adapter - EU
Weight (kg) 11.1
Item list

181581

Dim. F 2"
Note Adapter - UK
Weight (kg) 11.1
Item list
LK 816 - Grundfos Magna 32-80 - Female thread

LK 816 - Grundfos Magna 32-80 - Female thread 1 artikel

Article Dim. Note Weight (kg) Item List
181410 F 2” Adapter - EU 12.4

181410

Dim. F 2”
Note Adapter - EU
Weight (kg) 12.4
Item list

Detailed Information

Description

LK 816 ThermoKit E Eco is a loading group for heating applications with solid fuel boilers and storage tanks. The loading group is intended to ensure a high return temperature as well as an optimal temperature stratification in the storage tank, thus increasing the efficiency of the system. Tarring and condensation are prevented which prolongs boiler life.

LK 816 ThermoKit E Eco is a unit consisting of a low-energy circulating pump, an LK 840 ThermoMix mixing valve, an­ LK ­100 ­SmartComfort ­CT controller with adjustment of the lowest return temperature 5 - 99 °C and three ball valves to ­simplify installation and maintenance. Articles number 181578 and 181579 are delivered with an insulation for the mixing valve. The loading group is reversible and can easily be adapted for mounting to the right or left of the boiler. Thanks to the three ball valves any part can be changed without draining the system, should the need for servicing arise.

LK 816 ThermoKit E Eco is installed in the return circuit between the solid fuel boiler and the storage tank. The group should be mounted with the drive-shaft of the circulating pump in a horizontal position.

The loading group normally requires no maintenance. The installation should be checked regularly.

Technical Data

Voltage: 230 VAC 50/60 Hz
Power consumption: 10-180 W depending on pump speed
LK 100 SmartComfort CT Electronic Controller, 3 VA
Primary voltage, adapter: 100-240 VAC 50/60 Hz
Secondary voltage, adapter: 24 VDC 250 mA
Max. boiler efficiency: Dependent on circulating pump
Angle of rotation: Temperature Controller: 90°
Torque: Temperature Controller: 5 Nm
Operation time: 140 sec.
Max. working pressure: 1.0 MPa (10 bar)
Working temperature: Min. 5 °C/Max. 95 °C
Return temperature: 5 - 99 °C
Ambient temperature: Min. 5 °C/Max. 40 °C
Thread standard: Rp - female thread, G - female thread
Protection class: IP 40
Media 1: Water - Glycol mixture max. 50%
Circulating pumps: Grundfos Magna 32-80 180, Grundfos UPML 25-95 180, Grundfos UPMXL 32-105 180
Material, valve body: Brass EN 12165 CW617N
Material, insulation: Expanded Polypropylene EPP

Application

The function of the loading unit during the different phases of heating:

1. Heat up phase
The water circulates between boiler and loading group while the temperature of the boiler is rising.

2. Loading phase
The mixing valve starts to open and allows return water from the storage tank to be mixed with supply water before it returns to the boiler. The return temperature to the boiler is kept constant.

3. End phase
The mixing valve is fully open towards the storage tank. This results in an optimal transfer of heat from the boiler and the storage tank is filled with supply water. When the boiler has cooled the electronic controller prevents re-circulation from storage tank to boiler.

4. Self-circulation
In case of power failure or pump breakdown the electronic controller can be manaully operated and the storage tank is loaded through self-circulation.

Technical Diagrams

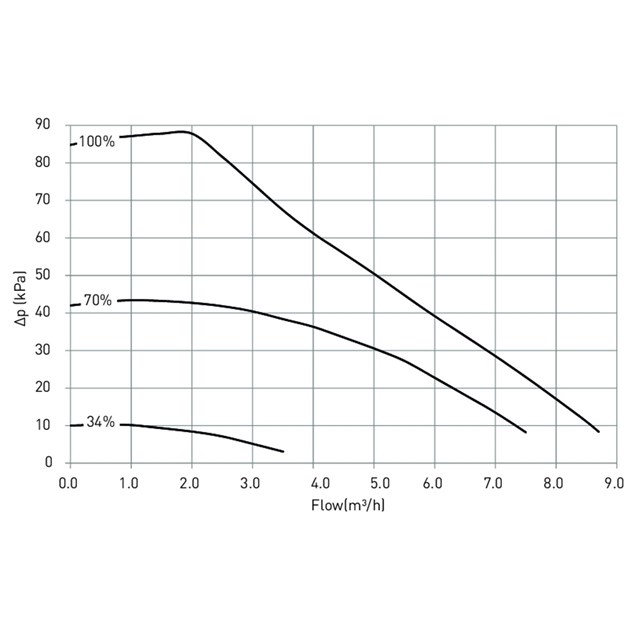

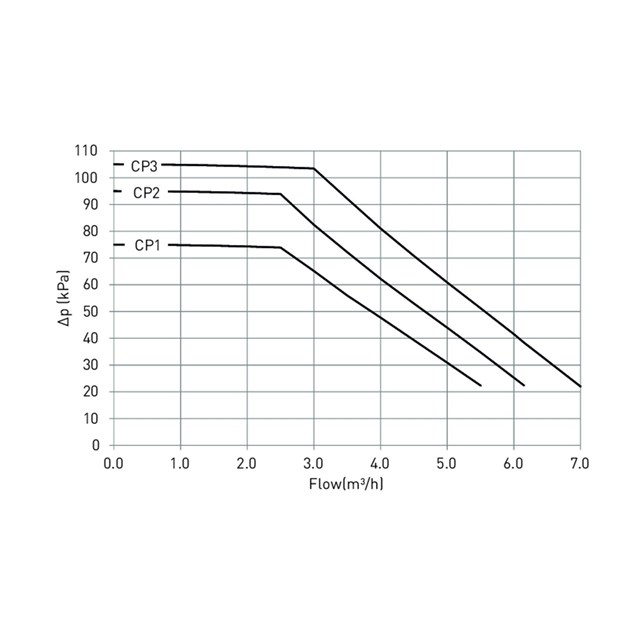

Boiler Capacity Diagram

Documentation

Product sheet

LK 816 ThermoKit E

Instruction manual

816 ThermoKit E Eco UPML 25_95 - Instruction_148790

Instruction manual

816 ThermoKit E Eco GF UPMXL 32-105 - Instruction_148791

Instruction manual

816 ThermoKit E Eco GF 32-80 - Instruction_148737

Applications

Biofuel ENG
