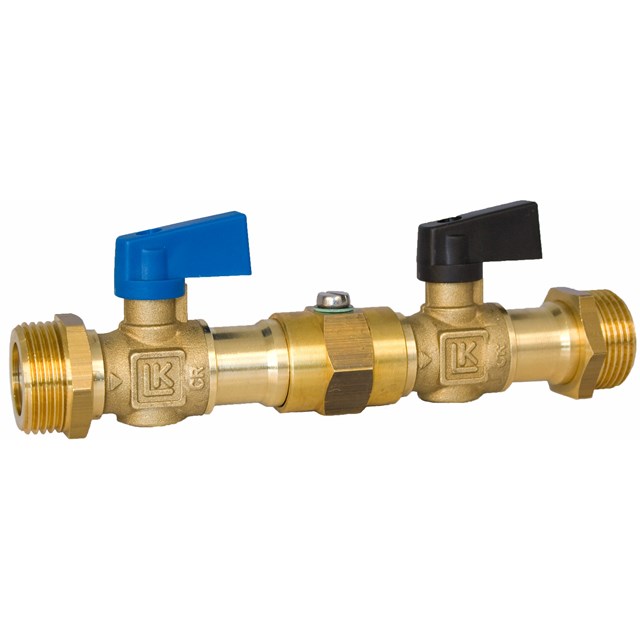

LK 537 ThermoFill® EB/EA
LK 537 ThermoFill® EB/EA
LK 537 ThermoFill® EB/EA

LK 537 ThermoFill® EB/EA

LK 537 ThermoFill® EB and EA are filler valves for heating systems. The valves have an integrated shut-off with ball valve and non-return valve, which ensures opening even at low differential pressures. LK 537 ...

Read more

LK 537 ThermoFill® EB/EA

  • Variants
  • Detailed Information
  • Documentation

Variants

LK 537 EB - Male thread

LK 537 EB - Male thread 1 artikel

Article Dim. Kvs m³/h Weight (kg) Item List
068007 M ¾" 2,7 0.1

068007

Dim. M ¾"
Kvs m³/h 2,7
Weight (kg) 0.1
Item list
LK 537 EA - Male thread

LK 537 EA - Male thread 1 artikel

Article Dim. Kvs m³/h Weight (kg) Item List
091122 M ¾" 1,9 0.3

091122

Dim. M ¾"
Kvs m³/h 1,9
Weight (kg) 0.3
Item list

Detailed Information

Description

LK 537 ThermoFill® EB and EA are filler valves for heating systems. The valves have an integrated shut-off with ball valve and non-return valve, which ensures opening even at low differential pressures. LK 537 EB can also be used as a shut-off valve in tapwater systems. The non-return valve in LK 537 EA can be inspected, which means it is classified as a backflow preventer type EA according to EN 1717.
The arrow on the valve body indicates the direction of flow.

External thread is sealed in the usual way, alternatively G ¾” flat coupling with rotating nut and flange gasket.

The valve requires no maintenance. The installation should be checked regularly.

Technical Data

Max. working pressure: 1.0 MPa (10 bar)
Opening pressure, check valve: 1 kPa
Working temperature: Min. 5 °C/Max. 90 °C
Thread standard: G - male thread
Material, valve body: DZR Brass EN 12165 CW625N
Material, sealing: EPDM
Other data: Check valve Type EA according to EN 1717
Material, check valve POM

Technical Diagrams

Documentation

Product sheet

LK 537 ThermoFill® EB/EA
