LK 534 ThermoFill® EA

New

LK 534 ThermoFill® EA

  • Integrated shut-off with ball valve and non-return valve
  • The non-return valve can be inspected, which means it is classified as EA type backflow protection according to EN 1717

LK 534 ThermoFill® EA is a filling valve for heating systems. The valve has an integrated shut-off/check valve which ­ensures opening even at low pressure differences. The check valve is inspectionable and clas...

Read more

LK 534 ThermoFill® EA

  • Variants
  • Detailed Information
  • Documentation

Variants

LK 534 - Female thread

LK 534 - Female thread 1 artikel

Article Dim. Kvs m³/h Weight (kg) Item List
182786 F ½" 1,1 0.3

182786

Dim. F ½"
Kvs m³/h 1,1
Weight (kg) 0.3
Item list
LK 534 - Compression fitting

LK 534 - Compression fitting 1 artikel

Article Dim. Kvs m³/h Weight (kg) Item List
182787 15 mm 1,1 0.3

182787

Dim. 15 mm
Kvs m³/h 1,1
Weight (kg) 0.3
Item list

Detailed Information

Description

LK 534 ThermoFill® EA is a filling valve for heating systems. The valve has an integrated shut-off/check valve which ­ensures opening even at low pressure differences. The check valve is inspectionable and classified as a back flow preventer Type EA, fluid category 1-2, according to EN 1717.

By closing the first valve towards the tap water system and loosening the screw, the function of the check valve can be checked.

The arrow on the valve body indicates the direction of the flow.
The thread has to be sealed in the usual manner.
It is easier to fit the compression fitting if a lubricant is applied to the thread and bevel. Tighten first by hand and then with a box spanner. Number of turns to be tightened with a spanner: See the separate datasheet for compression fittings. Soft pipes are to be fitted with a support sleeve.

The valve requires no maintenance but the installation should be checked regularly.

Technical Data

Working temperature: Min. 5 °C/Max. 90 °C
Max. working pressure: 1.0 MPa (10 bar)
Opening pressure, check valve: 1 kPa (0,01 bar)
Thread standard: G - female thread, ISO 228/1
Material, valve body: DZR Brass EN 12165 CW625N
Other data: Check valve: Type EA according to EN 1717
Material, check valve: POM
Material, sealing: EPDM

Technical Diagrams

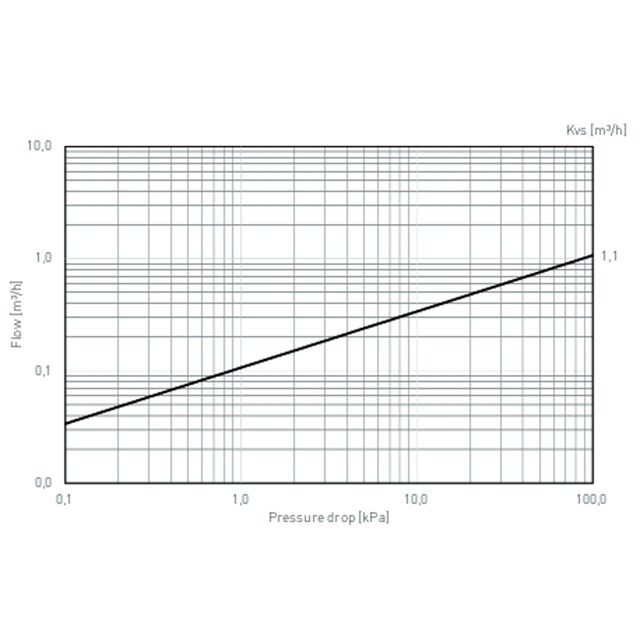

Capacity Diagram

Documentation

Product sheet

LK 534 ThermoFill® EA

Instruction manual

248402_LK 534_Instruction

Instruction manual

248401_LK 534_Instruction
