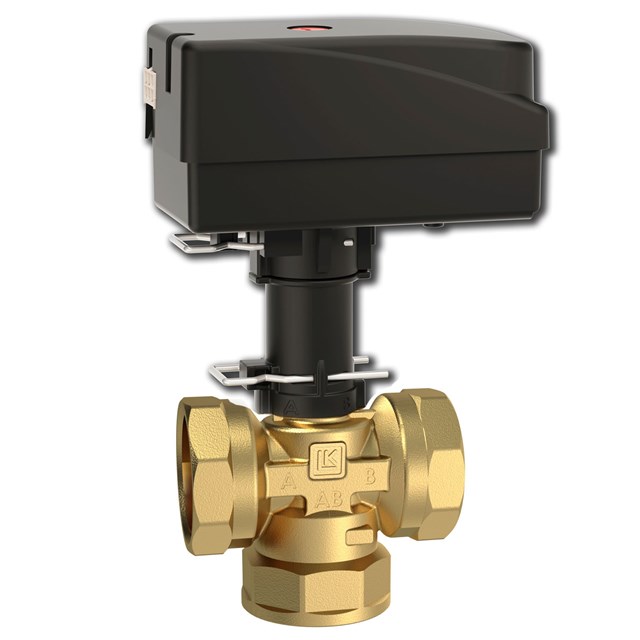

LK 525 MultiZone Solar

LK 525 MultiZone Solar

LK 525 MultiZone Solar is a motorized 3-way zone ­valve for On/Off control intended for use in solar heating ­systems where the temperature of the media can reach very high levels. The plastic adapter is instal...
