LK 522 FilterBall Magnet

LK 522 FilterBall Magnet

  • DZR Brass
  • Easy to clean the filter
  • Magnet Neodym, 12.000 gs

LK 522 FilterBall Magnet is a filter ball valve with an integrated magnet for collecting magnetite, suitable for heating, cooling and tap water systems. The filter and the magnet is easy to clean, just close t...

Read more

LK 522 FilterBall Magnet

  • Variants
  • Detailed Information
  • Documentation
  • Videos
  • Accessories & Spare parts

Variants

LK 522 Magnet - Female thread

LK 522 Magnet - Female thread 5 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm E mm Note Weight (kg) Dimensional sketch Item List
182274 F ¾" 5,0 60 55 87 117 51 Mesh opening filter: 0.7 mm 0.3
182275 F 1" 10,0 71 60 107 142 61 Mesh opening filter: 0.7 mm 0.5
182276 F 1¼" 17,0 84 65 107 149 75 Mesh opening filter: 0.7 mm 0.9
182277 F 1½" 31,0 93 80 143 189 88 Mesh opening filter: 0.7 mm 1.3
182278 F 2" 43,0 119 90 143 203 105 Mesh opening filter: 0.7 mm 2.1

182274

Dim. F ¾"
Kvs m³/h 5,0
A mm 60
B mm 55
C mm 87
D mm 117
E mm 51
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.3
Dimensional sketch
Item list

182275

Dim. F 1"
Kvs m³/h 10,0
A mm 71
B mm 60
C mm 107
D mm 142
E mm 61
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.5
Dimensional sketch
Item list

182276

Dim. F 1¼"
Kvs m³/h 17,0
A mm 84
B mm 65
C mm 107
D mm 149
E mm 75
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.9
Dimensional sketch
Item list

182277

Dim. F 1½"
Kvs m³/h 31,0
A mm 93
B mm 80
C mm 143
D mm 189
E mm 88
Note Mesh opening filter: 0.7 mm
Weight (kg) 1.3
Dimensional sketch
Item list

182278

Dim. F 2"
Kvs m³/h 43,0
A mm 119
B mm 90
C mm 143
D mm 203
E mm 105
Note Mesh opening filter: 0.7 mm
Weight (kg) 2.1
Dimensional sketch
Item list
LK 522 Magnet - Male thread

LK 522 Magnet - Male thread 2 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm E mm Note Weight (kg) Dimensional sketch Item List
182436 M ¾" 4,5 74 55 87 126 51 Mesh opening filter: 0.7 mm 0.4
182437 M 1" 9,0 85.5 60 107 153 61 Mesh opening filter: 0.7 mm 0.6

182436

Dim. M ¾"
Kvs m³/h 4,5
A mm 74
B mm 55
C mm 87
D mm 126
E mm 51
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.4
Dimensional sketch
Item list

182437

Dim. M 1"
Kvs m³/h 9,0
A mm 85.5
B mm 60
C mm 107
D mm 153
E mm 61
Note Mesh opening filter: 0.7 mm
Weight (kg) 0.6
Dimensional sketch
Item list
LK 522 Magnet, without handle - Female thread

LK 522 Magnet, without handle - Female thread 5 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm Note Weight (kg) Dimensional sketch Item List
182342 F ¾" 4,5 60 42 30 51 Mesh opening filter: 0.5 mm 0.3
182343 F 1" 9,0 71 46 36 61 Mesh opening filter: 0.5 mm 0.5
182344 F 1¼" 16,0 84 54 42 75 Mesh opening filter: 0.5 mm 0.9
182345 F 1½" 19,0 93 61 47 88 Mesh opening filter: 0.5 mm 1.3
182346 F 2" 21,0 119 69 60 105 Mesh opening filter: 0.5 mm 2.1

182342

Dim. F ¾"
Kvs m³/h 4,5
A mm 60
B mm 42
C mm 30
D mm 51
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.3
Dimensional sketch
Item list

182343

Dim. F 1"
Kvs m³/h 9,0
A mm 71
B mm 46
C mm 36
D mm 61
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.5
Dimensional sketch
Item list

182344

Dim. F 1¼"
Kvs m³/h 16,0
A mm 84
B mm 54
C mm 42
D mm 75
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.9
Dimensional sketch
Item list

182345

Dim. F 1½"
Kvs m³/h 19,0
A mm 93
B mm 61
C mm 47
D mm 88
Note Mesh opening filter: 0.5 mm
Weight (kg) 1.3
Dimensional sketch
Item list

182346

Dim. F 2"
Kvs m³/h 21,0
A mm 119
B mm 69
C mm 60
D mm 105
Note Mesh opening filter: 0.5 mm
Weight (kg) 2.1
Dimensional sketch
Item list
LK 522 Magnet, without handle - Male thread

LK 522 Magnet, without handle - Male thread 2 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm Note Weight (kg) Dimensional sketch Item List
182438 M ¾" 4,5 74 42 39 61 Mesh opening filter: 0.5 mm 0.4
182439 M 1" 9,0 85.5 46 45.5 61 Mesh opening filter: 0.5 mm 0.6

182438

Dim. M ¾"
Kvs m³/h 4,5
A mm 74
B mm 42
C mm 39
D mm 61
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.4
Dimensional sketch
Item list

182439

Dim. M 1"
Kvs m³/h 9,0
A mm 85.5
B mm 46
C mm 45.5
D mm 61
Note Mesh opening filter: 0.5 mm
Weight (kg) 0.6
Dimensional sketch
Item list

Detailed Information

Description

LK 522 FilterBall Magnet is a filter ball valve with an integrated magnet for collecting magnetite, suitable for heating, cooling and tap water systems.

The filter and the magnet is easy to clean, just close the ball valve, unscrew the lid and remove the filter and the magnet.

The valve requires no maintenance, but the installation should still be checked regularly.

Technical Data

Max. working pressure: 1.6 MPa (16 bar)
Working temperature: Min. -20 °C/Max. 120 °C
Mesh opening, filter: 0.7 mm / 0.5 mm
Thread standard: ISO 228/1
Media 1: Water - Glycol mixture max. 50%
Material, valve body: DZR Brass EN 12165 CW625N
Material, filter element: Stainless Steel
Material, sealing: PTFE
Material, cover sealing: EPDM
Material, magnet: Neodymium
Other data: Magnet Neodymium
Spindle sealing: Two O-rings, EPDM

Application

Technical Diagrams

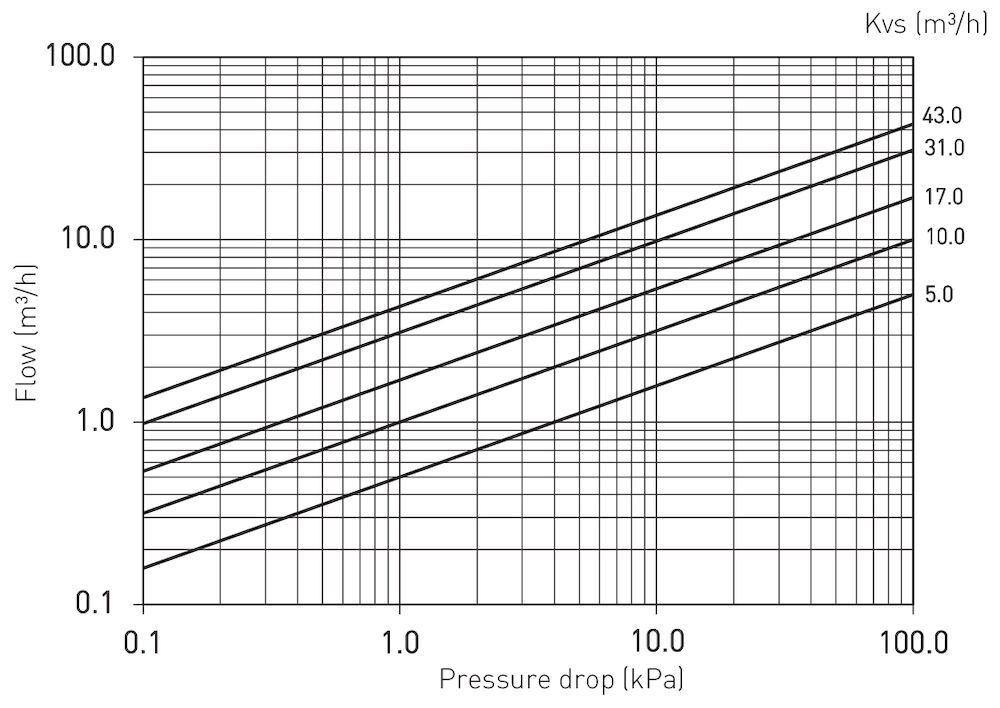

Capacity Diagram - 0.7 mm

Capacity Diagram - 0.5 mm

Documentation

Product sheet

LK 522 FilterBall Magnet

Instruction manual

522 FilterBall Magnet - Instruction_248174

Certificate/Type approval

CE Declaration of Conformity - 520_521_522_525_548_550_551_924.pdf

Accessories & Spare parts

Article no. Article Position
095355 522 ¾" Magnet, Spring 1
095356 522 1" Magnet, Spring 1
095357 522 1¼" Magnet, Spring 1
095358 522 1½" Magnet, Spring 1
095359 522 2" Magnet, Spring 1
095414 Filter ¾", Mesh opening: 0.7 mm 2
095415 Filter 1", Mesh opening: 0.7 mm 2
095417 Filter 1½, Mesh opening: 0.7 mm 2
095416 Filter 1¼", Mesh opening: 0.7 mm 2
095418 Filter 2", Mesh opening: 0.7 mm 2
095419 Filter ¾", Mesh opening: 0.5 mm 2
095421 Filter 1¼", Mesh opening: 0.5 mm 2
095420 Filter 1", Mesh opening: 0.5 mm 2
095422 Filter 1½", Mesh opening: 0.5 mm 2
095423 Filter 2", Mesh opening: 0.5 mm 2
095437 Cover & O-ring ¾" 3
095438 Cover & O-ring 1" 3
095439 Cover & O-ring 1¼" 3
095440 Cover & O-ring 1½" 3
095441 Cover & O-ring 2" 3
