LK 552 HydroMix

LK 552 HydroMix

  • Scald protection
  • Symmetrical flow
  • Adjustable temperature

LK 552 HydroMix is a mixing valve for water heating and heating systems. The mixing valve has a thermostatic element that regulates the supply of cold as well as hot water in order to achieve the desired ­tempe...

Read more

LK 552 HydroMix

  • Variants
  • Detailed Information
  • Documentation
  • Accessories & Spare parts

Variants

LK 552 - Female thread

LK 552 - Female thread 4 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm Note Weight (kg) Dimensional sketch Item List
182234 F ¾" 1,5 70 110 42 45 35 - 65 °C 0.6
182237 F ¾" 1,5 70 110 42 45 25 - 45 °C 0.6
182256 F 1" 3,5 84 122 50 52 35 - 65 °C 0.9
182260 F 1 " 3,5 84 122 50 52 25 - 45 °C 0.9

182234

Dim. F ¾"
Kvs m³/h 1,5
A mm 70
B mm 110
C mm 42
D mm 45
Note 35 - 65 °C
Weight (kg) 0.6

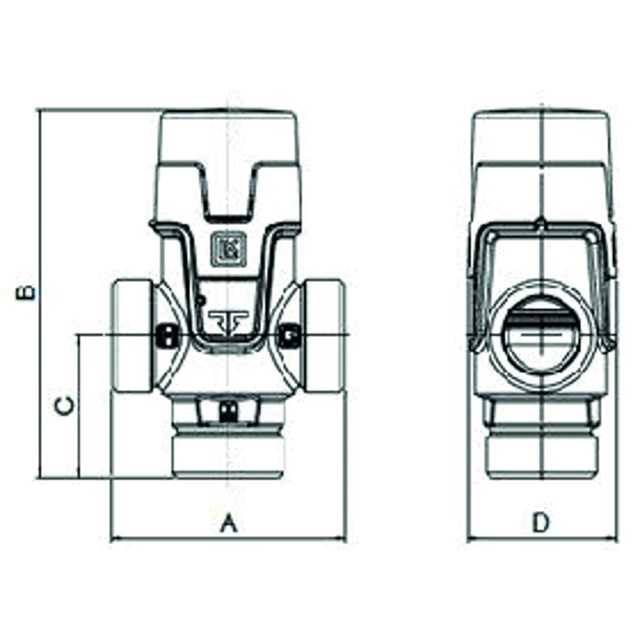

Dimensional sketch
Item list

182237

Dim. F ¾"
Kvs m³/h 1,5
A mm 70
B mm 110
C mm 42
D mm 45
Note 25 - 45 °C
Weight (kg) 0.6
Dimensional sketch
Item list

182256

Dim. F 1"
Kvs m³/h 3,5
A mm 84
B mm 122
C mm 50
D mm 52
Note 35 - 65 °C
Weight (kg) 0.9
Dimensional sketch
Item list

182260

Dim. F 1 "
Kvs m³/h 3,5
A mm 84
B mm 122
C mm 50
D mm 52
Note 25 - 45 °C
Weight (kg) 0.9
Dimensional sketch
Item list
LK 552 - Male thread

LK 552 - Male thread 8 variants

Article Dim. Kvs m³/h A mm B mm C mm D mm Note Weight (kg) Dimensional sketch Item List
182235 M ¾" 1,5 70 110 42 45 35 - 65 °C 0.5
182236 M 1" 1,5 70 110 42 45 35 - 65 °C 0.6
182238 M ¾" 1,5 70 110 42 45 25 - 45 °C 0.5
182239 M 1" 1,5 70 110 42 45 25 - 45 °C 0.6
182257 M 1" 3,5 84 122 50 52 35 - 65 °C 0.7
182258 M 1¼" 3,5 84 122 50 52 35 - 65 °C 0.8
182261 M 1" 3,5 84 122 50 52 25 - 45 °C 0.7
182262 M 1¼" 3,5 84 122 50 52 25 - 45 °C 0.8

182235

Dim. M ¾"
Kvs m³/h 1,5
A mm 70
B mm 110
C mm 42
D mm 45
Note 35 - 65 °C
Weight (kg) 0.5
Dimensional sketch
Item list

182236

Dim. M 1"
Kvs m³/h 1,5
A mm 70
B mm 110
C mm 42
D mm 45
Note 35 - 65 °C
Weight (kg) 0.6
Dimensional sketch
Item list

182238

Dim. M ¾"
Kvs m³/h 1,5
A mm 70
B mm 110
C mm 42
D mm 45
Note 25 - 45 °C
Weight (kg) 0.5
Dimensional sketch
Item list

182239

Dim. M 1"
Kvs m³/h 1,5
A mm 70
B mm 110
C mm 42
D mm 45
Note 25 - 45 °C
Weight (kg) 0.6
Dimensional sketch
Item list

182257

Dim. M 1"
Kvs m³/h 3,5
A mm 84
B mm 122
C mm 50
D mm 52
Note 35 - 65 °C
Weight (kg) 0.7
Dimensional sketch
Item list

182258

Dim. M 1¼"
Kvs m³/h 3,5
A mm 84
B mm 122
C mm 50
D mm 52
Note 35 - 65 °C
Weight (kg) 0.8
Dimensional sketch
Item list

182261

Dim. M 1"
Kvs m³/h 3,5
A mm 84
B mm 122
C mm 50
D mm 52
Note 25 - 45 °C
Weight (kg) 0.7
Dimensional sketch
Item list

182262

Dim. M 1¼"
Kvs m³/h 3,5
A mm 84
B mm 122
C mm 50
D mm 52
Note 25 - 45 °C
Weight (kg) 0.8
Dimensional sketch
Item list

Detailed Information

Description

LK 552 HydroMix is a mixing valve for water heating and heating systems. The mixing valve has a thermostatic element that regulates the supply of cold as well as hot water in order to achieve the desired ­temperature. The valve has an anti-scald function that shuts off the ­incoming hot water flow in case of failure of cold water supply.

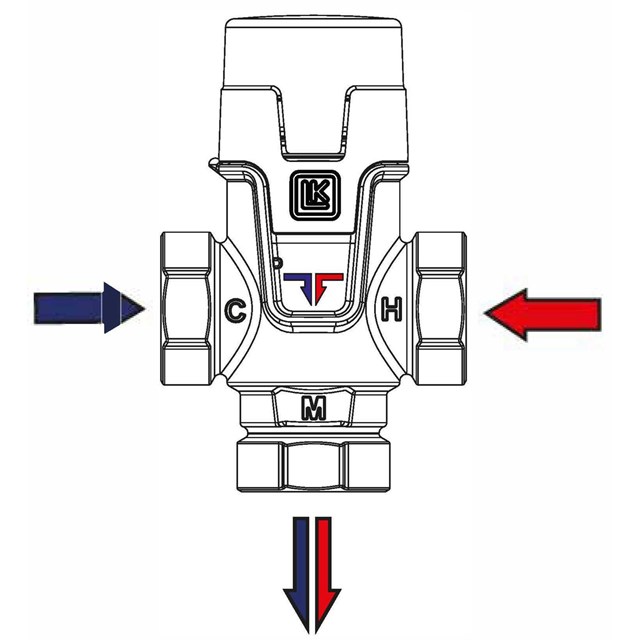

Arrows on the valve body indicate the direction of the flow.
C = incoming cold water
H = incoming hot water
M = outgoing mixed water

When fitted on top of boiler/storage tanks with built-in water heaters the valve should be installed with some space between boiler/storage tank and valve so as not to let the function of the valve be affected by heat radiation.

The valve knob is used to set the desired warm water temperature within the specified range. The ­protective cap prevents unintentional changes of the ­temperature setting.

The valve requires no maintenance but the installation should be checked regularly.

Technical Data

Max. working pressure: 1.0 MPa (10 bar)
Working temperature: Min. 5 °C/Max. 95 °C
Operating temperature: Min. 25 °C/Max. 45 °C
Min. 35 °C/Max. 65 °C
Thread standard: Rp - female thread, G - male thread
Media 1: Water - Glycol mixture max. 50% Ethanol mixture max. 30%
Material, valve body: Brass EN 12165 CW617N
Other data: Temperature stability ±3 °C
Temperature stability: ±3 °C

Application

Technical Diagrams

Capacity Diagram

Documentation

Product sheet

LK 552 HydroMix

Instruction manual

552 HydroMix - Instruction_248158

Applications

Biofuel ENG

Applications

Solar heating ENG

Applications

Water heating ENG

Applications

Heat pump ENG

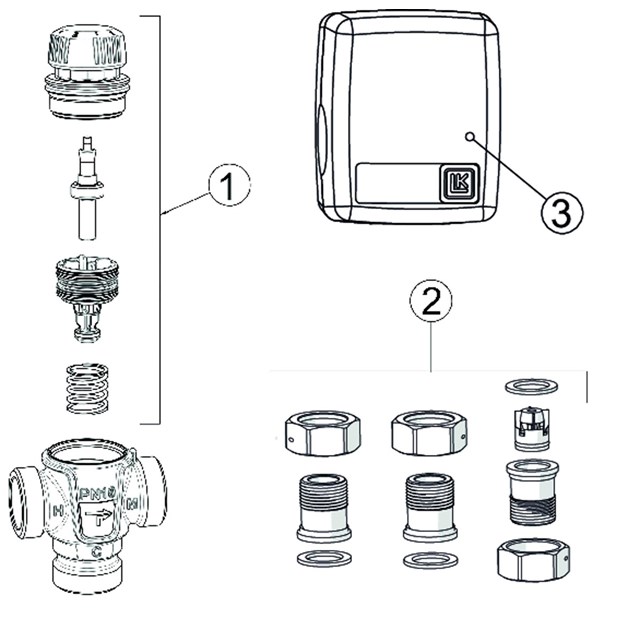

Accessories & Spare parts

Article no. Article Position
095360 Repair kit 552, 25 - 45 °C 1
095361 Repair kit 552, 35 - 65 °C 1
095362 Repair kit 552, 25 - 45 °C (Kvs 3.5) 1
095363 Repair kit 552, 35 - 65 °C (Kvs 3.5) 1
092052 Connection kit M ¾" x 1" with rotating nut, gaskets, 1 check valve 2
092053 Connection kit M ¾" x 1" with rotating nut, gaskets, 2 check valves 2
092333 Connection kit M 1" x 1¼" with rotating nut, gaskets, 1 check valve 2
092334 Connection kit M 1" x 1¼" with rotating nut, gaskets, 2 check valves 2
187310 LK Insulation, 551 (Kvs 3.2-4.2) / 552 3
