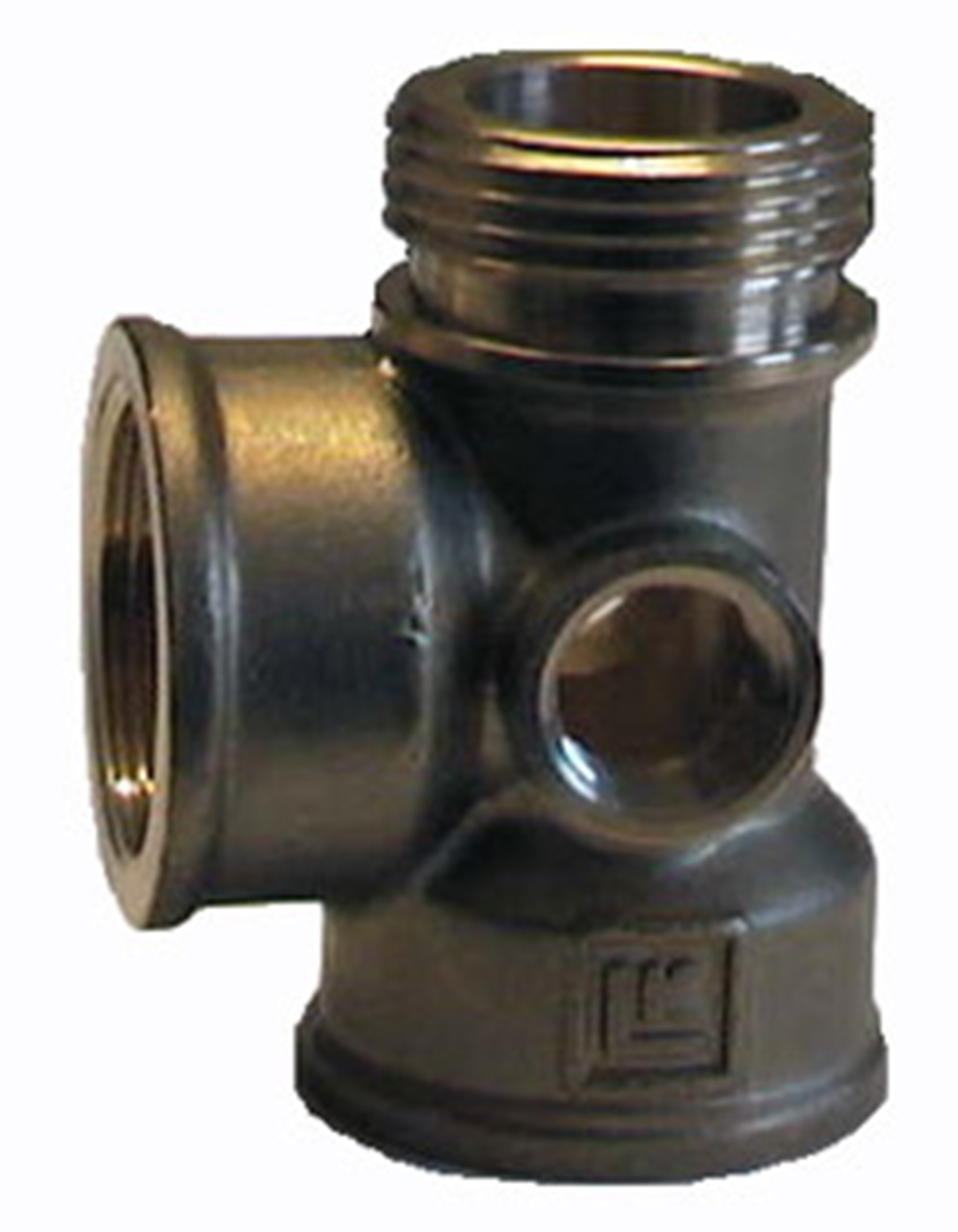

921-20 Manifold

921-20 Manifold

Collecting pipes for installation of safety equipment. Suitable for heating and cooling systems, recovery systems, etc.

921-20 Manifold

  • Variants
  • Detailed Information
  • Documentation

Variants

921-20

921-20 2 variants

Article Dim. A mm B mm C mm Weight (kg) Dimensional sketch Item List
017029 ¾" 27 29 27 0.1
070009 ¼" 0.3

017029

Dim. ¾"
A mm 27
B mm 29
C mm 27
Weight (kg) 0.1
Dimensional sketch
Item list

070009

Dim. ¼"
A mm
B mm
C mm
Weight (kg) 0.3
Dimensional sketch
Item list

Detailed Information

Description

Collecting pipes for installation of safety equipment. Suitable for heating and cooling systems, recovery systems, etc.

The collecting pipe has 2 x connections G8 fem. for connection of e.g. pressure gauge, draining valve and filler valve. Plug ¼" with O-ring is ordered separately, art. no.: 070009.
1 x connection G20 male for safety valve. 2 x connections G20 fem. for cooling water tank or connection to system.

Technical Data

Max. working pressure: 1.6 MPa
Working temperature: Max. 120 °C
Thread standard: G - male thread, G - female thread
Other data: Material, manifold Brass MS58

Documentation

Product sheet

921-20 Manifold
