403W Wall Plate Elbow

403W Wall Plate Elbow

Valve bracket with nut for compression fitting. Suitable for heating water and tapwater, air, gas and certain oils. For more information, see the separate product sheet for compression fittings.

403W Wall Plate Elbow

  • Variants
  • Detailed Information
  • Documentation

Variants

403W - Compression fitting / Female thread

403W - Compression fitting / Female thread 1 artikel

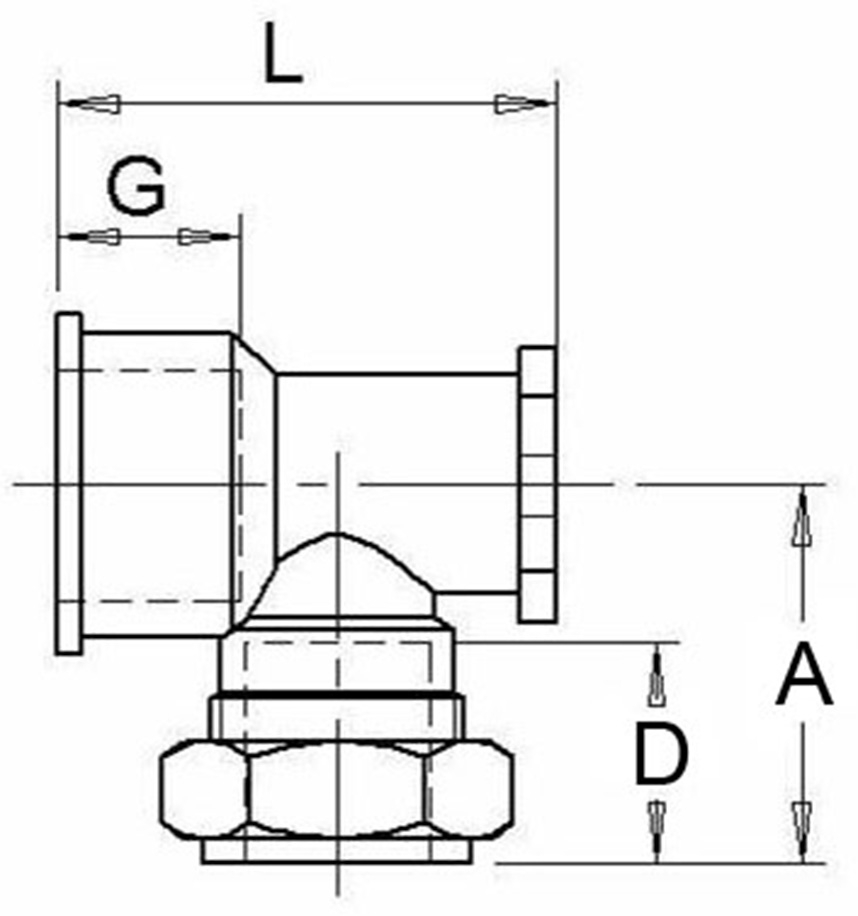

The connections are also available in a chrome-plated version on request. Dimensions according to dimension sketch are only indicative and not part of the specification. Nuts on couplings in sizes up to 28 mm have wrench flats with grooves. Sizes 35, 42 and 54 mm have nuts with hexagonal heads.

Article Dim. A mm D mm G mm L mm Weight (kg) Dimensional sketch Item List
189 75 78 22 x F20 38 25 18 54 0.2

189 75 78

Dim. 22 x F20
A mm 38
D mm 25
G mm 18
L mm 54
Weight (kg) 0.2
Dimensional sketch
Item list

Detailed Information

Description

Valve bracket with nut for compression fitting. Suitable for heating water and tapwater, air, gas and certain oils. For more information, see the separate product sheet for compression fittings.

Technical Data

Max. working pressure: 1.6 MPa
Working temperature: Max. 100 °C
Thread standard: G - female thread
Other data: Material, DZR-brass
Thread standard, Dim. 10, 12 and 15 mm has cylindrical thread (G) ¼”, ⅜” and ½”

Documentation

Product sheet

403W Wall Plate Elbow
