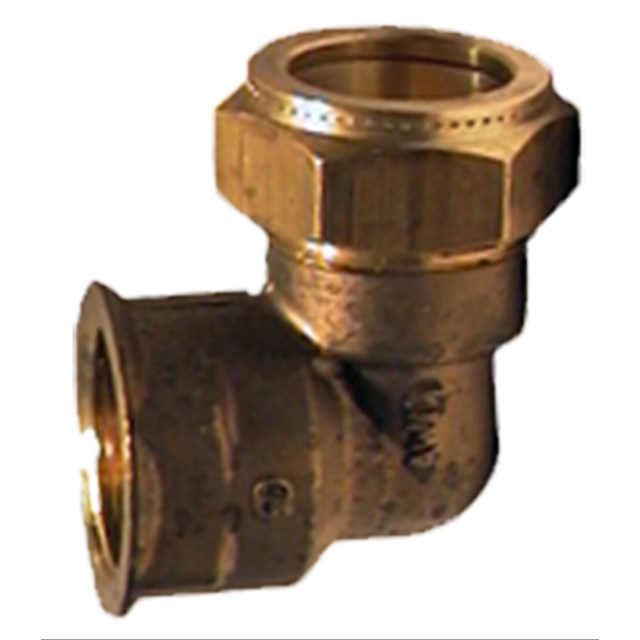

403 Elbow

403 Elbow

Angle coupling suitable for heating water and tapwater, air, gas and certain oils. For more information, see the separate product sheet for compression fittings.

403 Elbow

  • Variants
  • Detailed Information
  • Documentation

Variants

403 - Compression fitting / Female thread

403 - Compression fitting / Female thread 16 variants

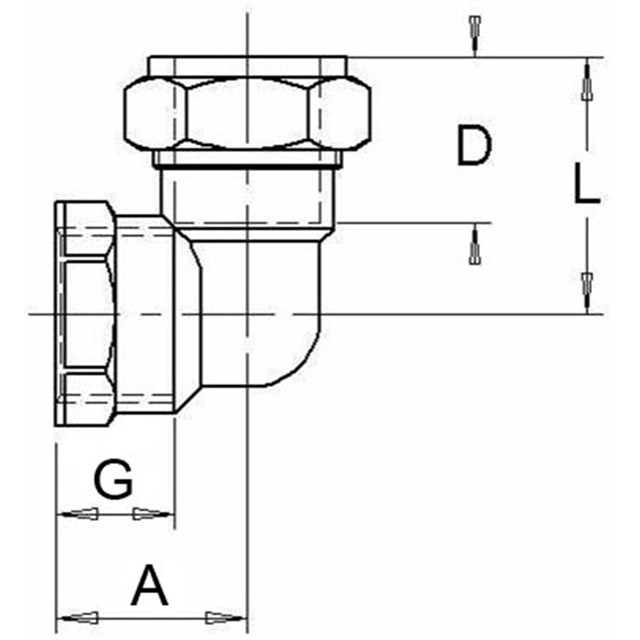

The connections are also available in a chrome-plated version on request. Dimensions according to dimension sketch are only indicative and not part of the specification. Nuts on couplings in sizes up to 28 mm have wrench flats with grooves. Sizes 35, 42 and 54 mm have nuts with hexagonal heads.

Article Dim. Weight (kg) A mm D mm G mm L mm Dimensional sketch Item List
189 27 28 8 x F8 0.03
189 27 51 10 x F15 0.06 22 18 15 33
189 27 77 12 x F10 0.05 19 20 14 30
189 27 85 12 x F15 0.07 23 20 16 33
189 28 01 15 x F10 0.06 22 22 13 32
189 28 19 15 x F15 0.08 24 22 16 35
189 28 27 15 x F20 0.1 26 22 17 38
189 28 43 18 x F15 0.1 28 26 14 38
189 28 50 18 x F20 0.1 30 24 18 39
189 28 76 22 x F15 0.1 32 24 15 39
189 28 84 22 x F20 0.1 29 24 18 39
189 28 92 22 x F25 0.1 30 24 19 39
189 29 26 28 x F25 0.2 36 26 19 44
189 29 59 35 x F32 0.3 43 30 22 53
189 29 75 42 x F40 0.6 48 35 24 57
189 29 91 54 x F50 0.1 55 39 24 70

189 27 28

Dim. 8 x F8
Weight (kg) 0.03
A mm
D mm
G mm
L mm
Dimensional sketch
Item list

189 27 51

Dim. 10 x F15
Weight (kg) 0.06
A mm 22
D mm 18
G mm 15
L mm 33
Dimensional sketch
Item list

189 27 77

Dim. 12 x F10
Weight (kg) 0.05
A mm 19
D mm 20
G mm 14
L mm 30
Dimensional sketch
Item list

189 27 85

Dim. 12 x F15
Weight (kg) 0.07
A mm 23
D mm 20
G mm 16
L mm 33
Dimensional sketch
Item list

189 28 01

Dim. 15 x F10
Weight (kg) 0.06
A mm 22
D mm 22
G mm 13
L mm 32
Dimensional sketch
Item list

189 28 19

Dim. 15 x F15
Weight (kg) 0.08
A mm 24
D mm 22
G mm 16
L mm 35
Dimensional sketch
Item list

189 28 27

Dim. 15 x F20
Weight (kg) 0.1
A mm 26
D mm 22
G mm 17
L mm 38
Dimensional sketch
Item list

189 28 43

Dim. 18 x F15
Weight (kg) 0.1
A mm 28
D mm 26
G mm 14
L mm 38
Dimensional sketch
Item list

189 28 50

Dim. 18 x F20
Weight (kg) 0.1
A mm 30
D mm 24
G mm 18
L mm 39
Dimensional sketch
Item list

189 28 76

Dim. 22 x F15
Weight (kg) 0.1
A mm 32
D mm 24
G mm 15
L mm 39
Dimensional sketch
Item list

189 28 84

Dim. 22 x F20
Weight (kg) 0.1
A mm 29
D mm 24
G mm 18
L mm 39
Dimensional sketch
Item list

189 28 92

Dim. 22 x F25
Weight (kg) 0.1
A mm 30
D mm 24
G mm 19
L mm 39
Dimensional sketch
Item list

189 29 26

Dim. 28 x F25
Weight (kg) 0.2
A mm 36
D mm 26
G mm 19
L mm 44
Dimensional sketch
Item list

189 29 59

Dim. 35 x F32
Weight (kg) 0.3
A mm 43
D mm 30
G mm 22
L mm 53
Dimensional sketch
Item list

189 29 75

Dim. 42 x F40
Weight (kg) 0.6
A mm 48
D mm 35
G mm 24
L mm 57
Dimensional sketch
Item list

189 29 91

Dim. 54 x F50
Weight (kg) 0.1
A mm 55
D mm 39
G mm 24
L mm 70
Dimensional sketch
Item list

Detailed Information

Description

Angle coupling suitable for heating water and tapwater, air, gas and certain oils. For more information, see the separate product sheet for compression fittings.

Technical Data

Max. working pressure: 1.6 MPa
Working temperature: Max. 100 °C
Thread standard: G - female thread
Other data: Material, DZR-brass
Thread standard, Dim. 8, 12 and 15 mm has cylindrical thread (G) ¼”, ⅜” resp. ½”.

Documentation

Product sheet

403 Elbow
