Check Valve 5

Check Valve 5

Non-return valve 5 is used in heating and cooling systems.

Check Valve 5

  • Variants
  • Detailed Information
  • Documentation

Variants

5 - Female thread

5 - Female thread 2 variants

Article Dim. D mm L mm Weight (kg) Dimensional sketch Item List
055242 1" 44 59 0.2
055243 1 ¼" 56 66 0.3

055242

Dim. 1"
D mm 44
L mm 59
Weight (kg) 0.2
Dimensional sketch
Item list

055243

Dim. 1 ¼"
D mm 56
L mm 66
Weight (kg) 0.3
Dimensional sketch
Item list

Detailed Information

Description

Non-return valve 5 is used in heating and cooling systems.

The arrow on the valve body indicates the direction of flow. The non-return valve operates regardless of position. Use the non-return valve’s wrench flat for the relevant side during assembly. The thread is sealed in the usual way.

The valve requires no maintenance. The installation should be checked regularly.

Technical Data

Max. working pressure: 1.6 MPa
Opening pressure, check valve: 5 kPa
Working temperature: Min. -20°C - Max. 120°C
Thread standard: G - female thread
Other data: Material, Valve body Brass MS 58
Material, Valve Cone Soft sealing valve Cone in Hostaform®
Material, Valve spring stainless steel AISI 302

Technical Diagrams

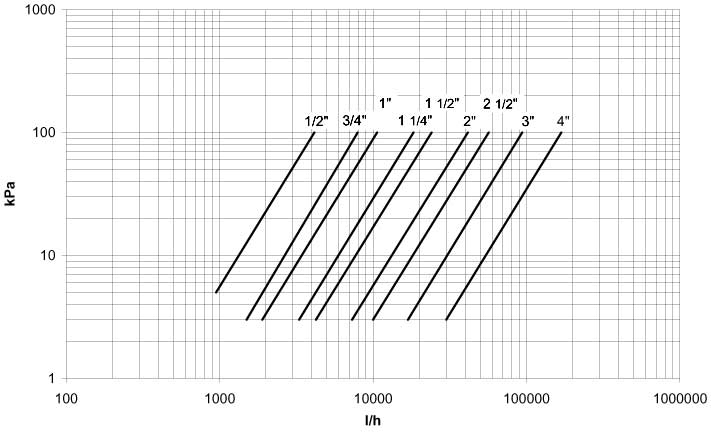

Pressure drop diagram

Documentation

Product sheet
