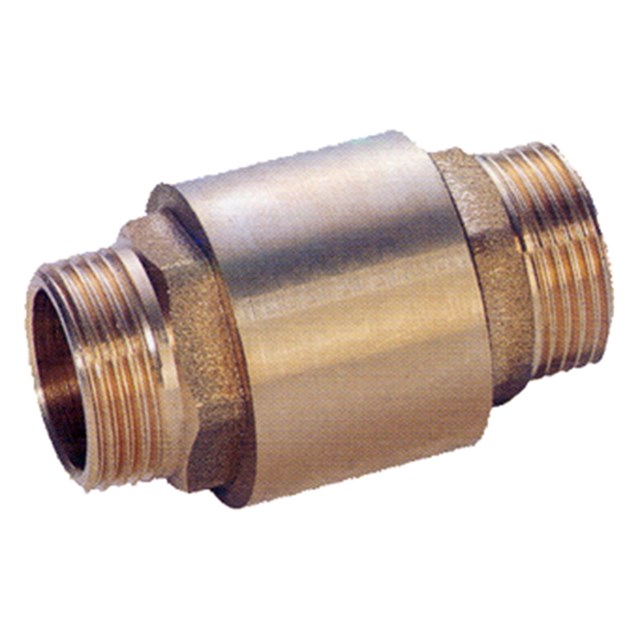

8 Check Valve

8 Check Valve

Non-return valve 8 is used in heating and cooling systems.

8 Check Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

8 - Male thread

8 - Male thread 1 artikel

Article Dim. D mm L mm Weight (kg) Dimensional sketch Item List
055479 1" 47,8 76 0.3

055479

Dim. 1"
D mm 47,8
L mm 76
Weight (kg) 0.3

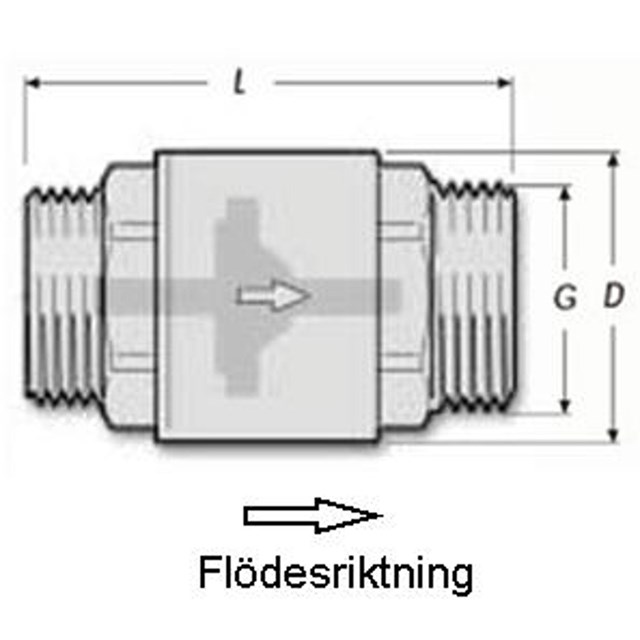

Dimensional sketch
Item list

Detailed Information

Description

Non-return valve 8 is used in heating and cooling systems.

The arrow on the valve body indicates the direction of flow. The non-return valve operates regardless of position. Use the non-return valve’s wrench flat for the relevant side during assembly. The thread is sealed in the usual way.

The valve requires no maintenance. The installation should be checked regularly.

Technical Data

Max. working pressure: 1.6 MPa
Working temperature: Max. 110°C
Thread standard: G - male thread
Other data: Material, Valve body Brass MS 58
Material, Valve cone Soft sealing valve cone with NBR
Material, Valve spring stainless steel AISI 302

Technical Diagrams

Pressure drop diagram

Documentation

Product sheet
