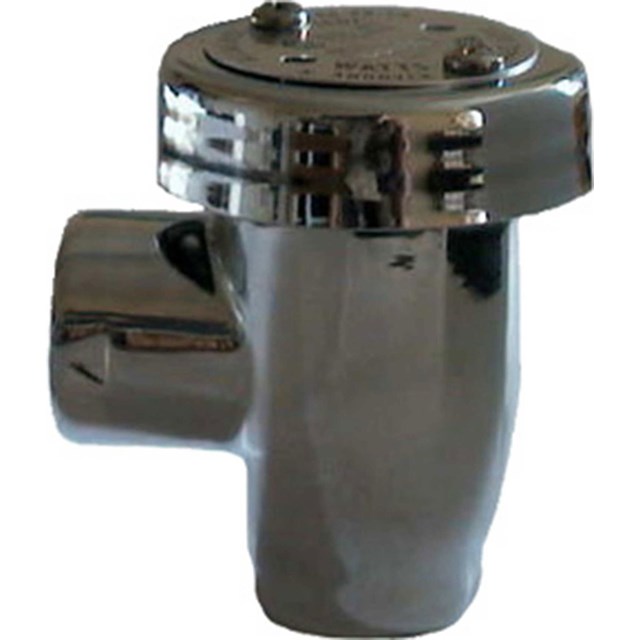

288 AC-HA Vakuum Valve

288 AC-HA Vakuum Valve

Vacuum valve 288 AC-HA is used in tapwater installations with protective covering to fluid category 3 (2).

288 AC-HA Vakuum Valve

  • Variants
  • Detailed Information
  • Documentation

Variants

288 AC-HA - Female thread

288 AC-HA - Female thread 1 artikel

Article Dim. A mm B mm C mm Weight (kg) Dimensional sketch Item List
055007 ½" 51 30 37 0.2

055007

Dim. ½"
A mm 51
B mm 30
C mm 37
Weight (kg) 0.2

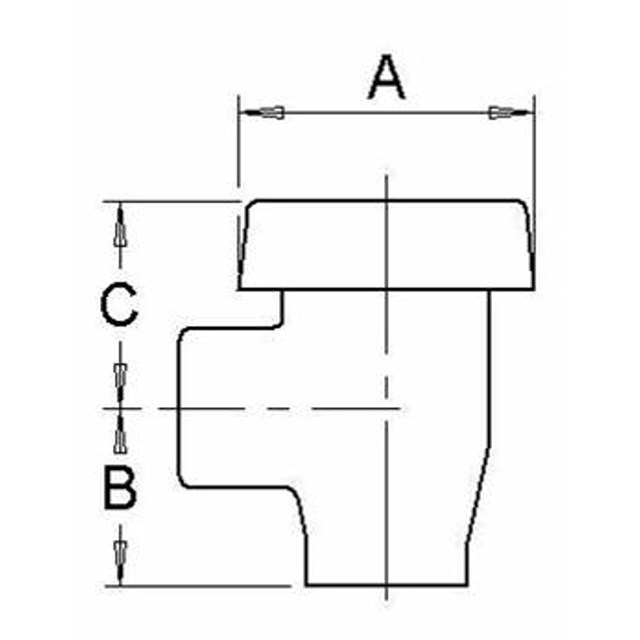

Dimensional sketch
Item list

Detailed Information

Description

Vacuum valve 288 AC-HA is used in tapwater installations with protective covering to fluid category 3 (2).

The arrow on the valve body indicates the direction of flow. Fits the top of vertical pipes according to the schematic diagram.

The valve requires no maintenance.

Technical Data

Max. working pressure: 1.0 MPa
Working temperature: Max. 90°C
Thread standard: G - female thread
Other data: Material, valve housing Chrome-plated valve housing in gunmetal
Material, sealing ring Silicone rubber
Backflow preventer Type HA, according to SS-EN 1717

Documentation

Product sheet
