Reducing Fitting 5243

Reducing Fitting 5243

Reducing fitting for heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

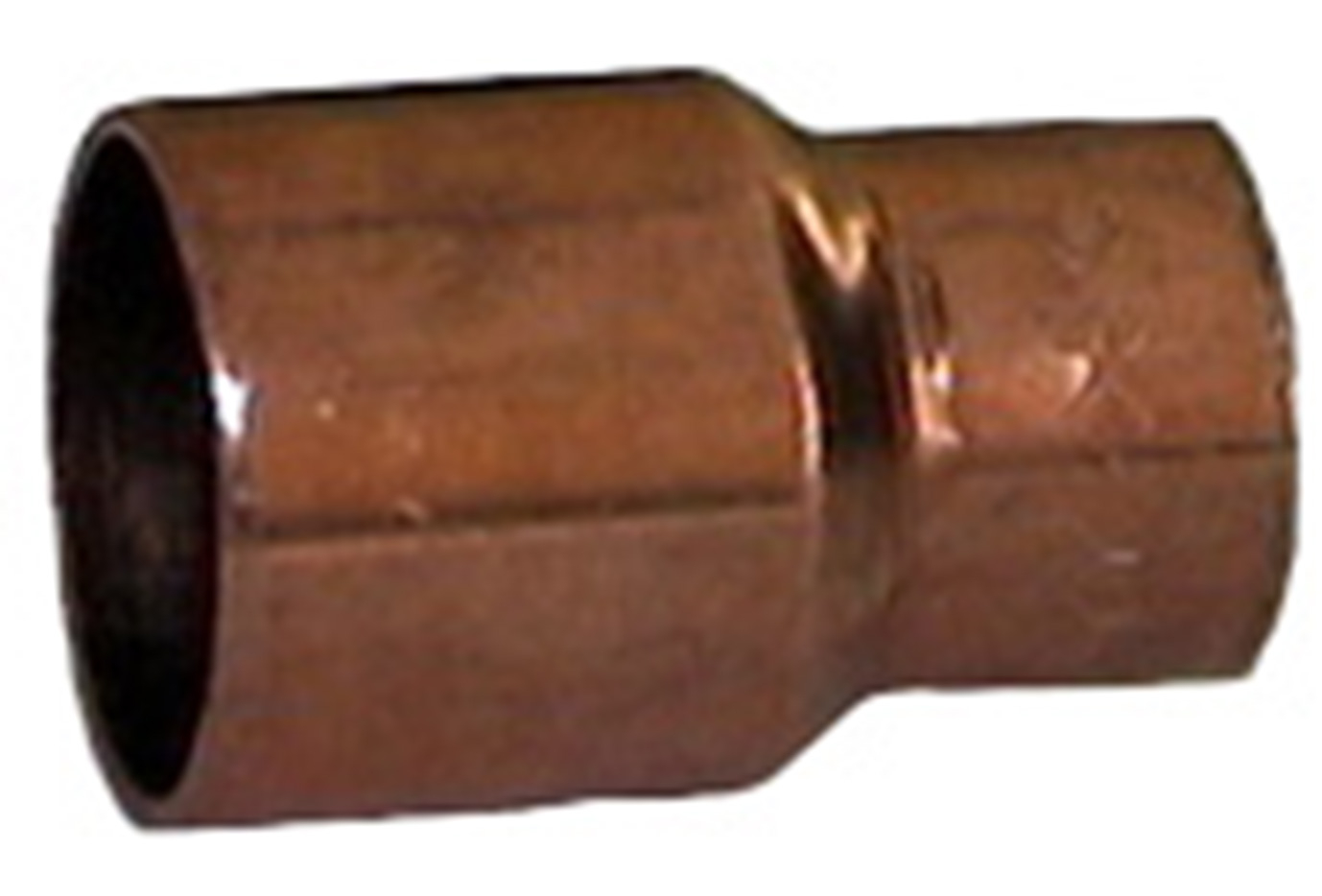

Reducing Fitting 5243

  • Variants
  • Detailed Information
  • Documentation

Variants

Reducing Fitting 5243 - Female /Male

Reducing Fitting 5243 - Female /Male 38 variants

Manufacturing and quality control in accordance with DIN 2856 chapters 10 and 11. The dimensions used in the sketch are for illustration only and not part of the specification.

Article Dim. A mm Z mm Weight (kg) Dimensional sketch Item List
200 72 01 8 x 6 17 11 0.01
200 72 19 10 x 6 18 11 0.01
200 72 27 10 x 8 17 9 0.01
200 72 35 12 x 6 23 17 0.01
200 72 43 12 x 8 23 16 0.01
200 72 50 12 x 10 21 13 0.01
200 72 76 15 x 10 25 17 0.01
200 72 84 15 x 12 25 14 0.01
200 73 34 18 x 10 29 21 0.01
200 73 42 18 x 12 28 19 0.01
200 73 59 18 x 15 30 18 0.01
200 73 83 22 x 10 33 24 0.02
200 73 91 22 x 12 33 24 0.02
200 74 09 22 x 15 34 23 0.02
200 74 25 22 x 18 35 22 0.02
200 74 58 28 x 12 43 32 0.03
200 74 66 28 x 15 42 30 0.04
200 74 82 28 x 18 40 27 0.04
200 74 90 28 x 22 42 26 0.03
200 75 24 35 x 15 55 44 0.06
200 75 32 35 x 18 53 43 0.06
200 75 40 35 x 22 52 36 0.06
200 75 57 35 x 28 53 43 0.05
200 76 23 42 x 15 0.07
200 76 49 42 x 18 64 49 0.08
200 76 56 42 x 22 60 44 0.09
200 76 64 42 x 28 58 39 0.09
200 76 72 42 x 35 58 35 0.09
200 77 19 54 x 22 67 52 0.1
200 77 22 54 x 28 70 52 0.1
200 77 30 54 x 35 72 49 0.2
200 77 55 54 x 42 70 43 0.1
200 78 05 70 x 42 89 58 0.3
200 78 13 70 x 54 85 49 0.3
200 78 39 76 x 54 87 51 0.3
051058 89 x 54 93 61 1.0
200 78 62 89 x 76 84 50 1.0
051256 108 x 54 122 90

200 72 01

Dim. 8 x 6
A mm 17
Z mm 11
Weight (kg) 0.01
Dimensional sketch
Item list

200 72 19

Dim. 10 x 6
A mm 18
Z mm 11
Weight (kg) 0.01
Dimensional sketch
Item list

200 72 27

Dim. 10 x 8
A mm 17
Z mm 9
Weight (kg) 0.01
Dimensional sketch
Item list

200 72 35

Dim. 12 x 6
A mm 23
Z mm 17
Weight (kg) 0.01
Dimensional sketch
Item list

200 72 43

Dim. 12 x 8
A mm 23
Z mm 16
Weight (kg) 0.01
Dimensional sketch
Item list

200 72 50

Dim. 12 x 10
A mm 21
Z mm 13
Weight (kg) 0.01
Dimensional sketch
Item list

200 72 76

Dim. 15 x 10
A mm 25
Z mm 17
Weight (kg) 0.01
Dimensional sketch
Item list

200 72 84

Dim. 15 x 12
A mm 25
Z mm 14
Weight (kg) 0.01
Dimensional sketch
Item list

200 73 34

Dim. 18 x 10
A mm 29
Z mm 21
Weight (kg) 0.01
Dimensional sketch
Item list

200 73 42

Dim. 18 x 12
A mm 28
Z mm 19
Weight (kg) 0.01
Dimensional sketch
Item list

200 73 59

Dim. 18 x 15
A mm 30
Z mm 18
Weight (kg) 0.01
Dimensional sketch
Item list

200 73 83

Dim. 22 x 10
A mm 33
Z mm 24
Weight (kg) 0.02
Dimensional sketch
Item list

200 73 91

Dim. 22 x 12
A mm 33
Z mm 24
Weight (kg) 0.02
Dimensional sketch
Item list

200 74 09

Dim. 22 x 15
A mm 34
Z mm 23
Weight (kg) 0.02
Dimensional sketch
Item list

200 74 25

Dim. 22 x 18
A mm 35
Z mm 22
Weight (kg) 0.02
Dimensional sketch
Item list

200 74 58

Dim. 28 x 12
A mm 43
Z mm 32
Weight (kg) 0.03
Dimensional sketch
Item list

200 74 66

Dim. 28 x 15
A mm 42
Z mm 30
Weight (kg) 0.04
Dimensional sketch
Item list

200 74 82

Dim. 28 x 18
A mm 40
Z mm 27
Weight (kg) 0.04
Dimensional sketch
Item list

200 74 90

Dim. 28 x 22
A mm 42
Z mm 26
Weight (kg) 0.03
Dimensional sketch
Item list

200 75 24

Dim. 35 x 15
A mm 55
Z mm 44
Weight (kg) 0.06
Dimensional sketch
Item list

200 75 32

Dim. 35 x 18
A mm 53
Z mm 43
Weight (kg) 0.06
Dimensional sketch
Item list

200 75 40

Dim. 35 x 22
A mm 52
Z mm 36
Weight (kg) 0.06
Dimensional sketch
Item list

200 75 57

Dim. 35 x 28
A mm 53
Z mm 43
Weight (kg) 0.05
Dimensional sketch
Item list

200 76 23

Dim. 42 x 15
A mm
Z mm
Weight (kg) 0.07
Dimensional sketch
Item list

200 76 49

Dim. 42 x 18
A mm 64
Z mm 49
Weight (kg) 0.08
Dimensional sketch
Item list

200 76 56

Dim. 42 x 22
A mm 60
Z mm 44
Weight (kg) 0.09
Dimensional sketch
Item list

200 76 64

Dim. 42 x 28
A mm 58
Z mm 39
Weight (kg) 0.09
Dimensional sketch
Item list

200 76 72

Dim. 42 x 35
A mm 58
Z mm 35
Weight (kg) 0.09
Dimensional sketch
Item list

200 77 19

Dim. 54 x 22
A mm 67
Z mm 52
Weight (kg) 0.1
Dimensional sketch
Item list

200 77 22

Dim. 54 x 28
A mm 70
Z mm 52
Weight (kg) 0.1
Dimensional sketch
Item list

200 77 30

Dim. 54 x 35
A mm 72
Z mm 49
Weight (kg) 0.2
Dimensional sketch
Item list

200 77 55

Dim. 54 x 42
A mm 70
Z mm 43
Weight (kg) 0.1
Dimensional sketch
Item list

200 78 05

Dim. 70 x 42
A mm 89
Z mm 58
Weight (kg) 0.3
Dimensional sketch
Item list

200 78 13

Dim. 70 x 54
A mm 85
Z mm 49
Weight (kg) 0.3
Dimensional sketch
Item list

200 78 39

Dim. 76 x 54
A mm 87
Z mm 51
Weight (kg) 0.3
Dimensional sketch
Item list

051058

Dim. 89 x 54
A mm 93
Z mm 61
Weight (kg) 1.0
Dimensional sketch
Item list

200 78 62

Dim. 89 x 76
A mm 84
Z mm 50
Weight (kg) 1.0
Dimensional sketch
Item list

051256

Dim. 108 x 54
A mm 122
Z mm 90
Weight (kg)
Dimensional sketch
Item list

Detailed Information

Description

Reducing fitting for heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: See table below
Other data: Copper Cu corresponding to DIN 1787, ISO 1337

Application

Max. working pressure

For each dimension in brazing, depending on media and temperature.

Documentation

Product sheet

Reducing Fitting 5243
