Drop Ear Elbow 4472G

Drop Ear Elbow 4472G

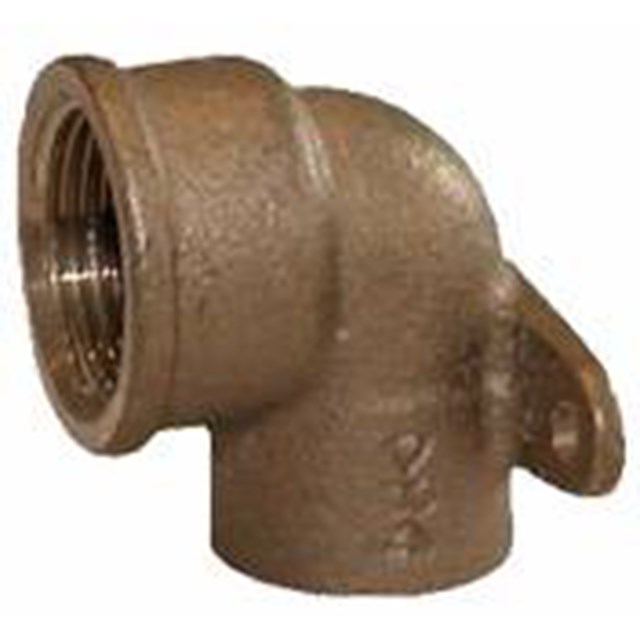

Wall plate elbow with two screw holes. For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Drop Ear Elbow 4472G

  • Variants
  • Detailed Information
  • Documentation

Variants

4472G - Female/Female Thread

4472G - Female/Female Thread 4 variants

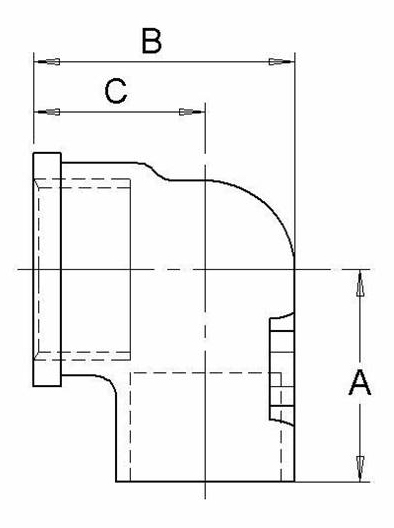

Thread standard according to DIN – ISO 228. Manufacturing and quality control in accordance with DIN 2856 chapters 10 and 11. The dimensions used in the sketch are for illustration only and not part of the specification.

Article Dim. A mm B mm C mm Weight (kg) Dimensional sketch Item List
201 41 32 12 x ½" 20 29 20 0.06
201 41 57 15 x ½" 23 32 22 0.07
051054 15 x ¾" 27 33 23 0.1
201 41 81 22 x ¾" 31 39 25 0.1

201 41 32

Dim. 12 x ½"
A mm 20
B mm 29
C mm 20
Weight (kg) 0.06
Dimensional sketch
Item list

201 41 57

Dim. 15 x ½"
A mm 23
B mm 32
C mm 22
Weight (kg) 0.07
Dimensional sketch
Item list

051054

Dim. 15 x ¾"
A mm 27
B mm 33
C mm 23
Weight (kg) 0.1
Dimensional sketch
Item list

201 41 81

Dim. 22 x ¾"
A mm 31
B mm 39
C mm 25
Weight (kg) 0.1
Dimensional sketch
Item list

Detailed Information

Description

Wall plate elbow with two screw holes.
For heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: See table below
Thread standard: R - female thread
Other data: Red Brass, according to DIN 1705, ISO 1338

Application

Documentation

Product sheet

Drop Ear Elbow 4472G
