Elbow 5090

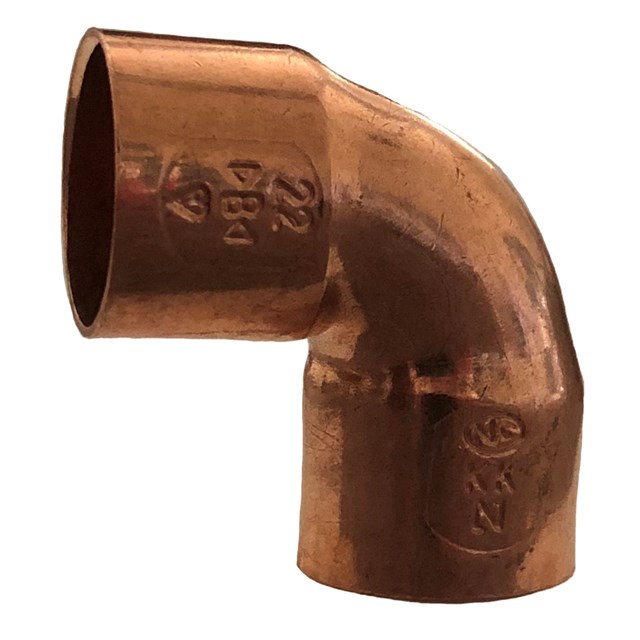

Elbow 5090

Angle 90°, for heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Elbow 5090

  • Variants
  • Detailed Information
  • Documentation

Variants

Elbow 5090 - Female

Elbow 5090 - Female 10 variants

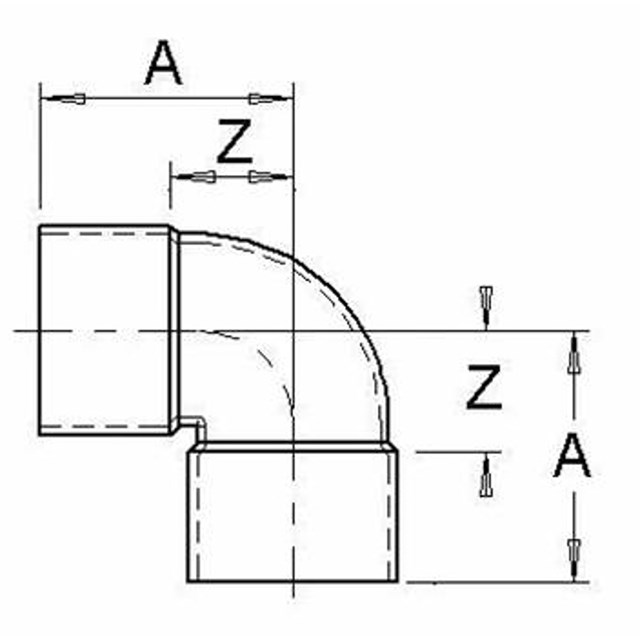

Manufacturing and quality control in accordance with DIN 2856 chapters 10 and 11. The dimensions used in the sketch are for illustration only and not part of the specification.

Article Dim. A mm Z mm Weight (kg) Dimensional sketch Item List
200 10 22 10 18 9 0.01
200 10 30 12 16 7 0.01
200 10 48 15 21 11 0.01
200 10 63 18 24 12 0.02
200 10 71 22 29 14 0.03
200 10 89 28 35 16 0.06
200 10 97 35 48 24 0.1
200 11 13 42 55 28 0.2
200 11 21 54 70 38 0.3
200 11 47 76 89 56 0.7

200 10 22

Dim. 10
A mm 18
Z mm 9
Weight (kg) 0.01
Dimensional sketch
Item list

200 10 30

Dim. 12
A mm 16
Z mm 7
Weight (kg) 0.01
Dimensional sketch
Item list

200 10 48

Dim. 15
A mm 21
Z mm 11
Weight (kg) 0.01
Dimensional sketch
Item list

200 10 63

Dim. 18
A mm 24
Z mm 12
Weight (kg) 0.02
Dimensional sketch
Item list

200 10 71

Dim. 22
A mm 29
Z mm 14
Weight (kg) 0.03
Dimensional sketch
Item list

200 10 89

Dim. 28
A mm 35
Z mm 16
Weight (kg) 0.06
Dimensional sketch
Item list

200 10 97

Dim. 35
A mm 48
Z mm 24
Weight (kg) 0.1
Dimensional sketch
Item list

200 11 13

Dim. 42
A mm 55
Z mm 28
Weight (kg) 0.2
Dimensional sketch
Item list

200 11 21

Dim. 54
A mm 70
Z mm 38
Weight (kg) 0.3
Dimensional sketch
Item list

200 11 47

Dim. 76
A mm 89
Z mm 56
Weight (kg) 0.7
Dimensional sketch
Item list

Detailed Information

Description

Angle 90°, for heating and cooling systems, domestic water, steam, condensate, air, oil and gas.

Technical Data

Max. working pressure: See table below
Other data: Copper Cu corresponding to DIN 1787, ISO 1337

Application

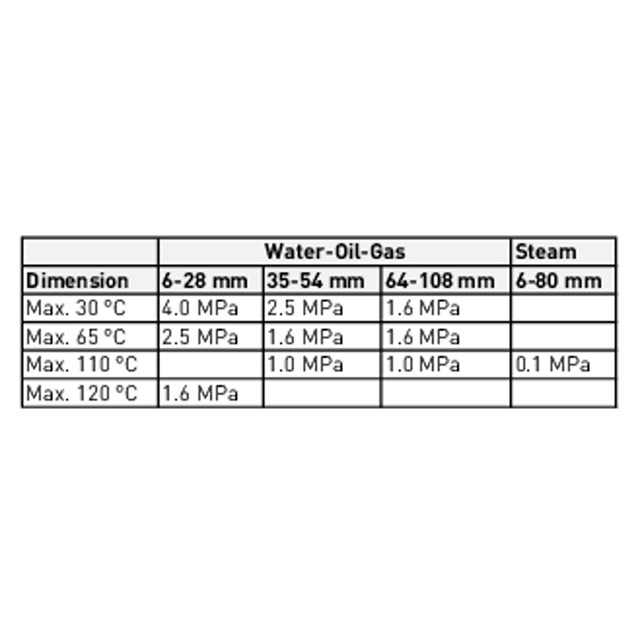

Max. working pressure

For each dimension in brazing, depending on media and temperature.

Documentation

Product sheet

Elbow 5090
